Exterior: L6000 mm x W4000 mm x H2800 mm
Interior: L5900 mm × W3900 mm × H2650 mm

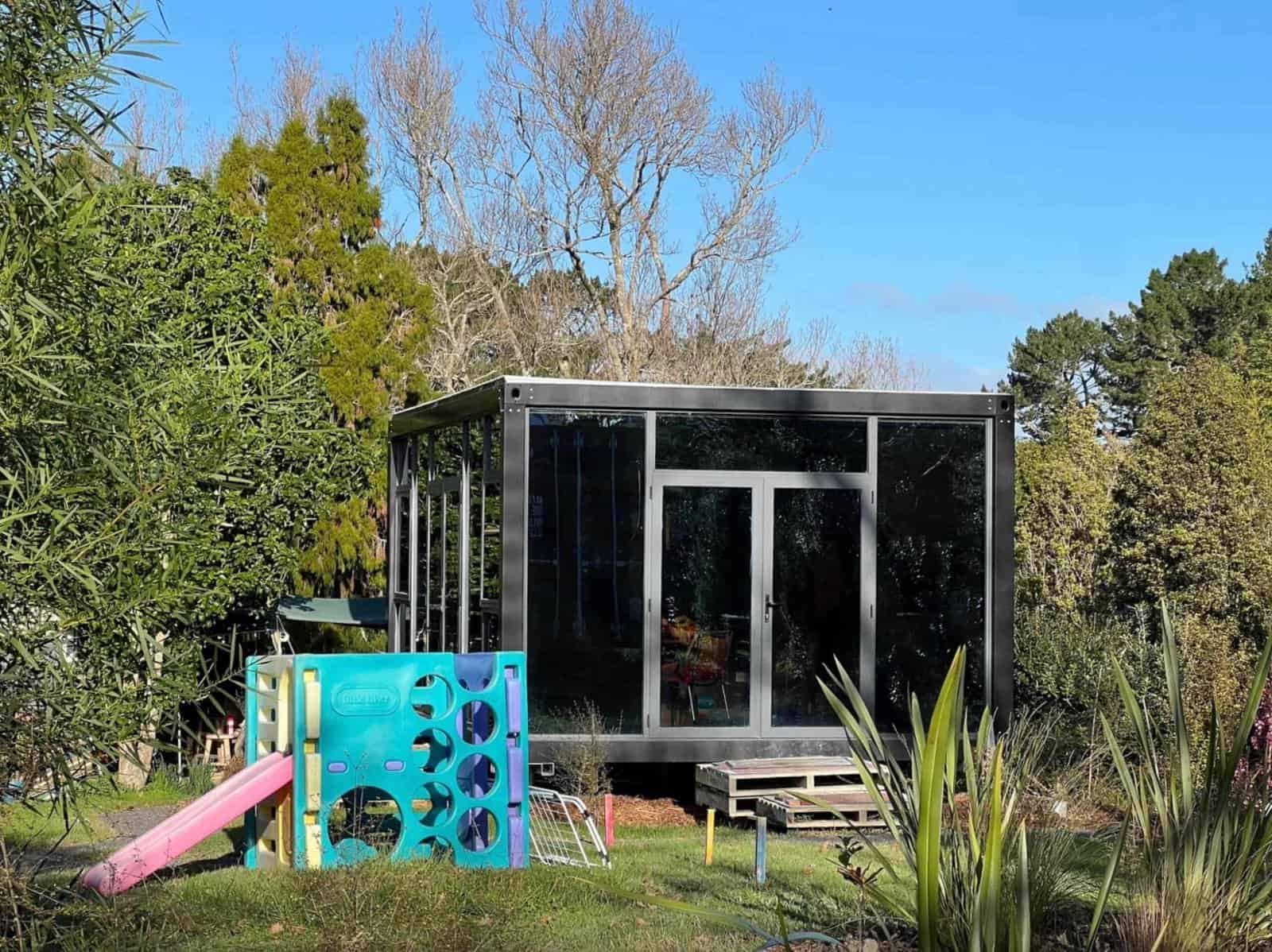

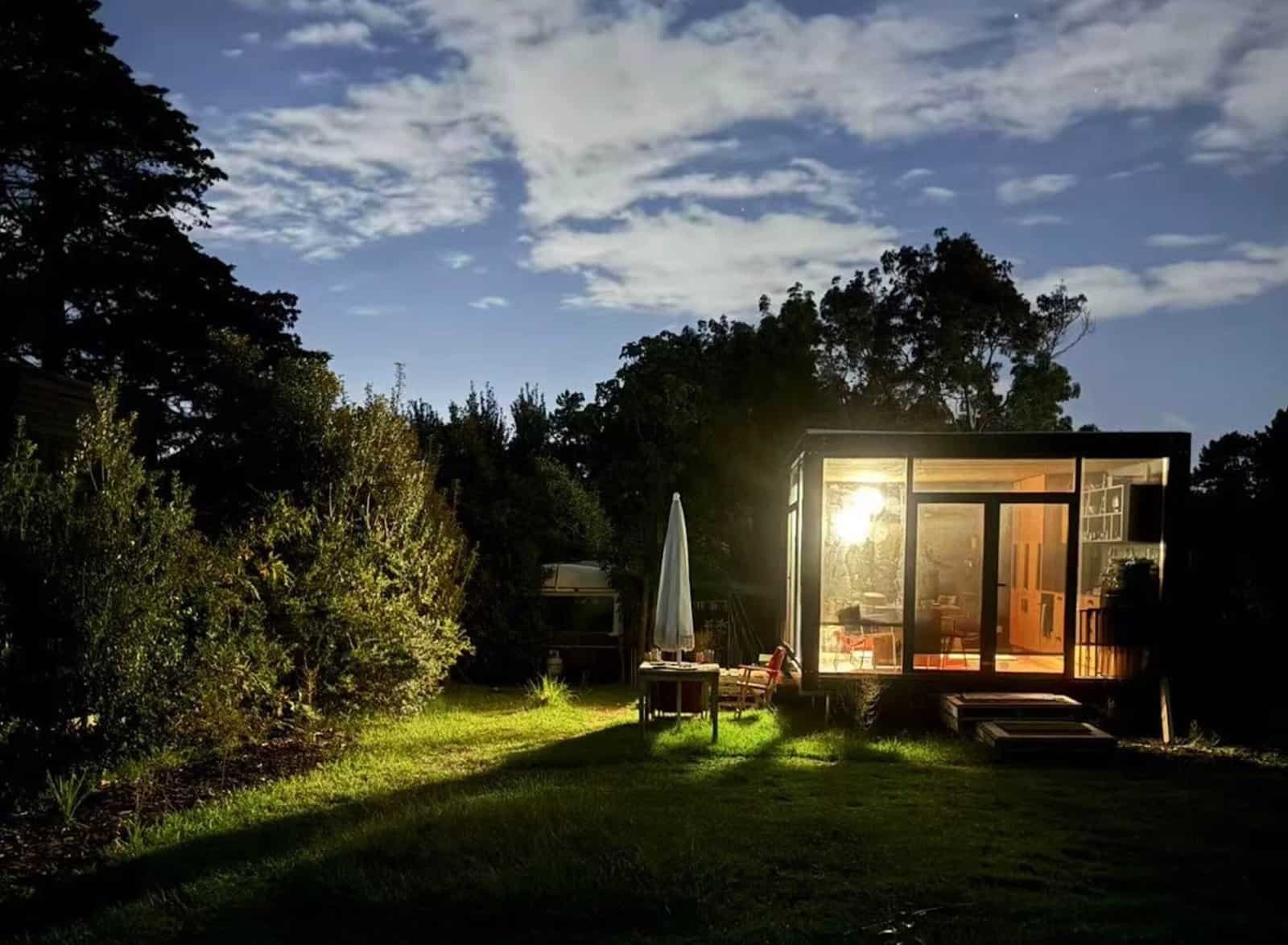

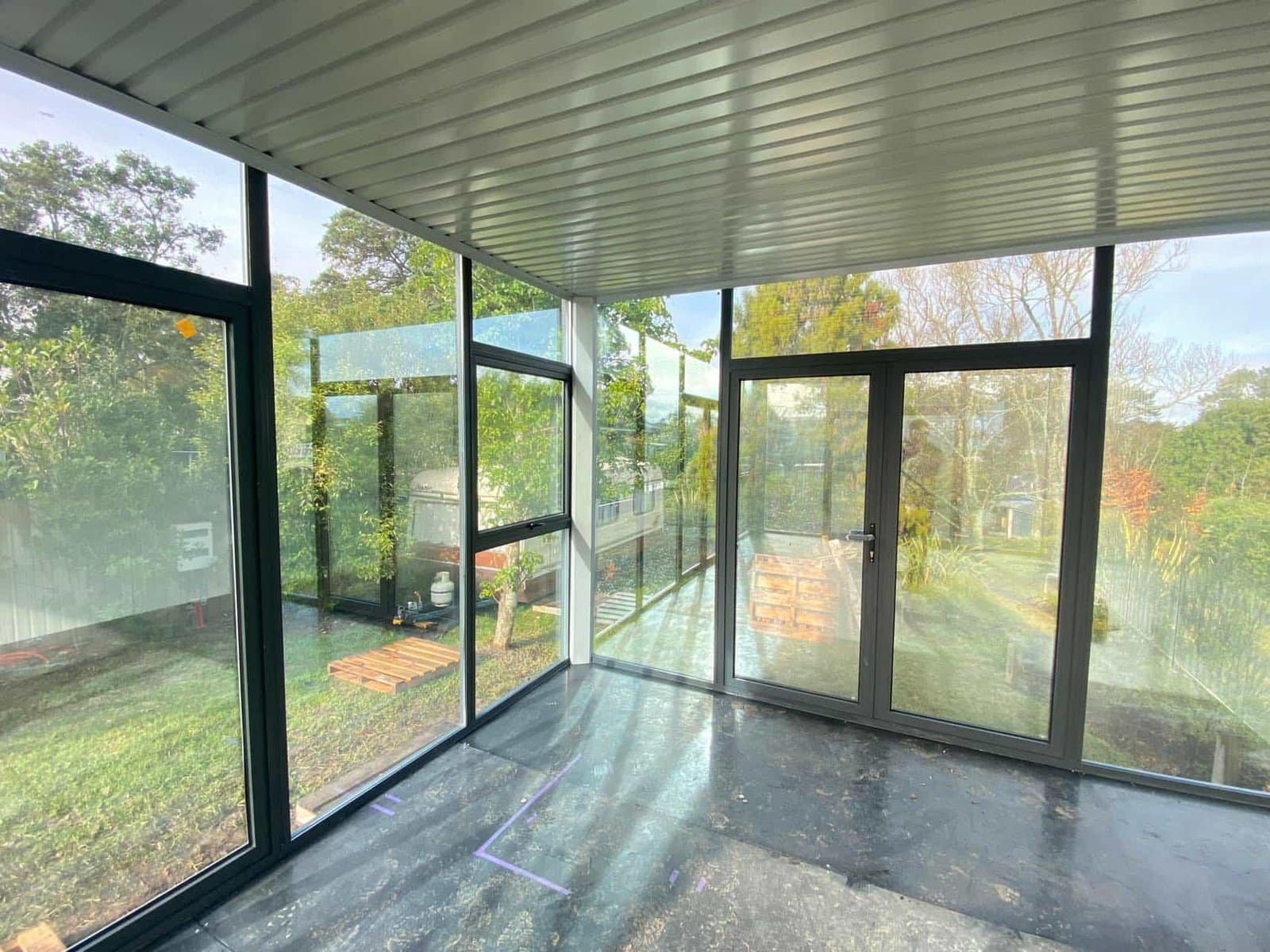

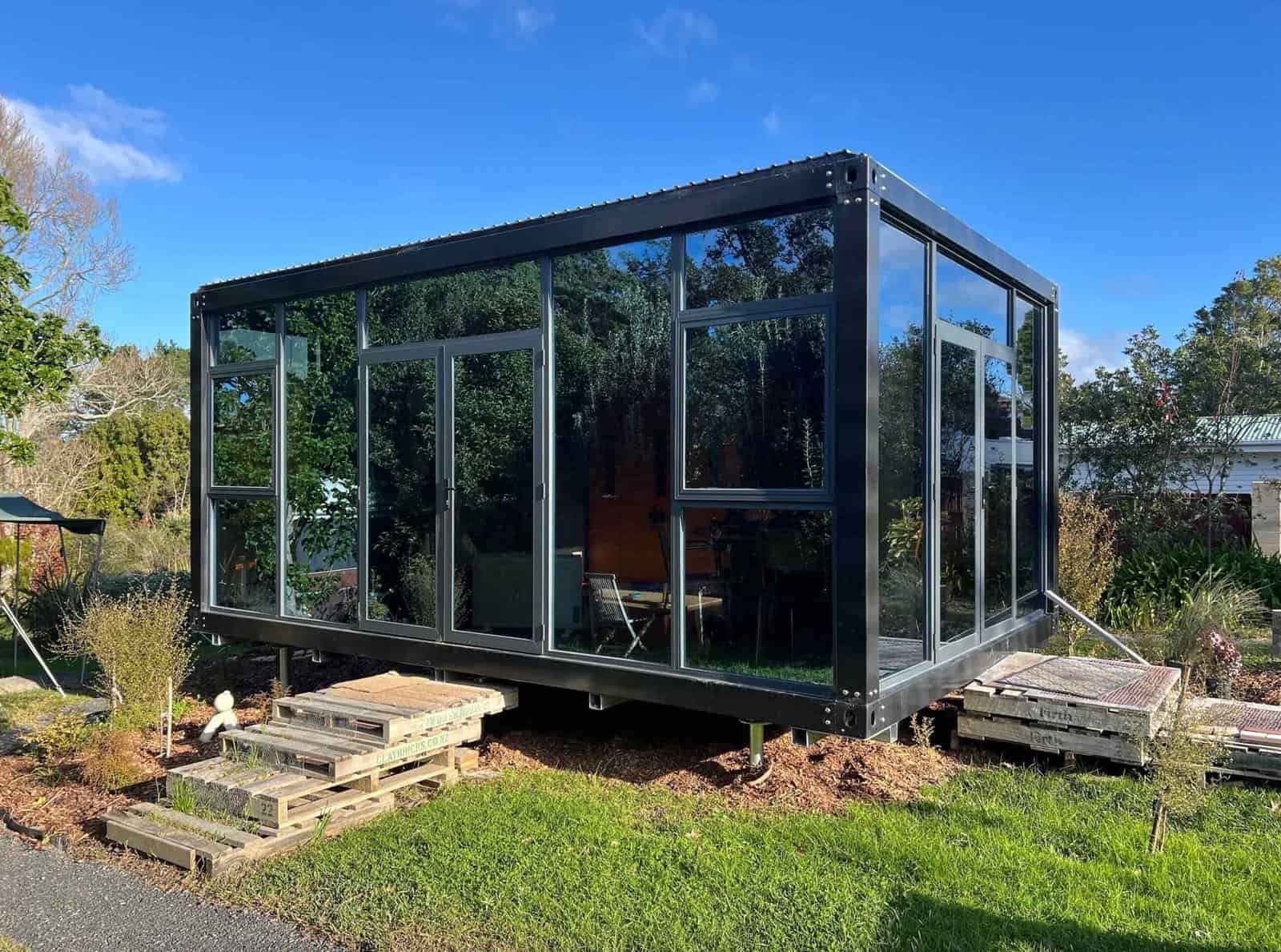

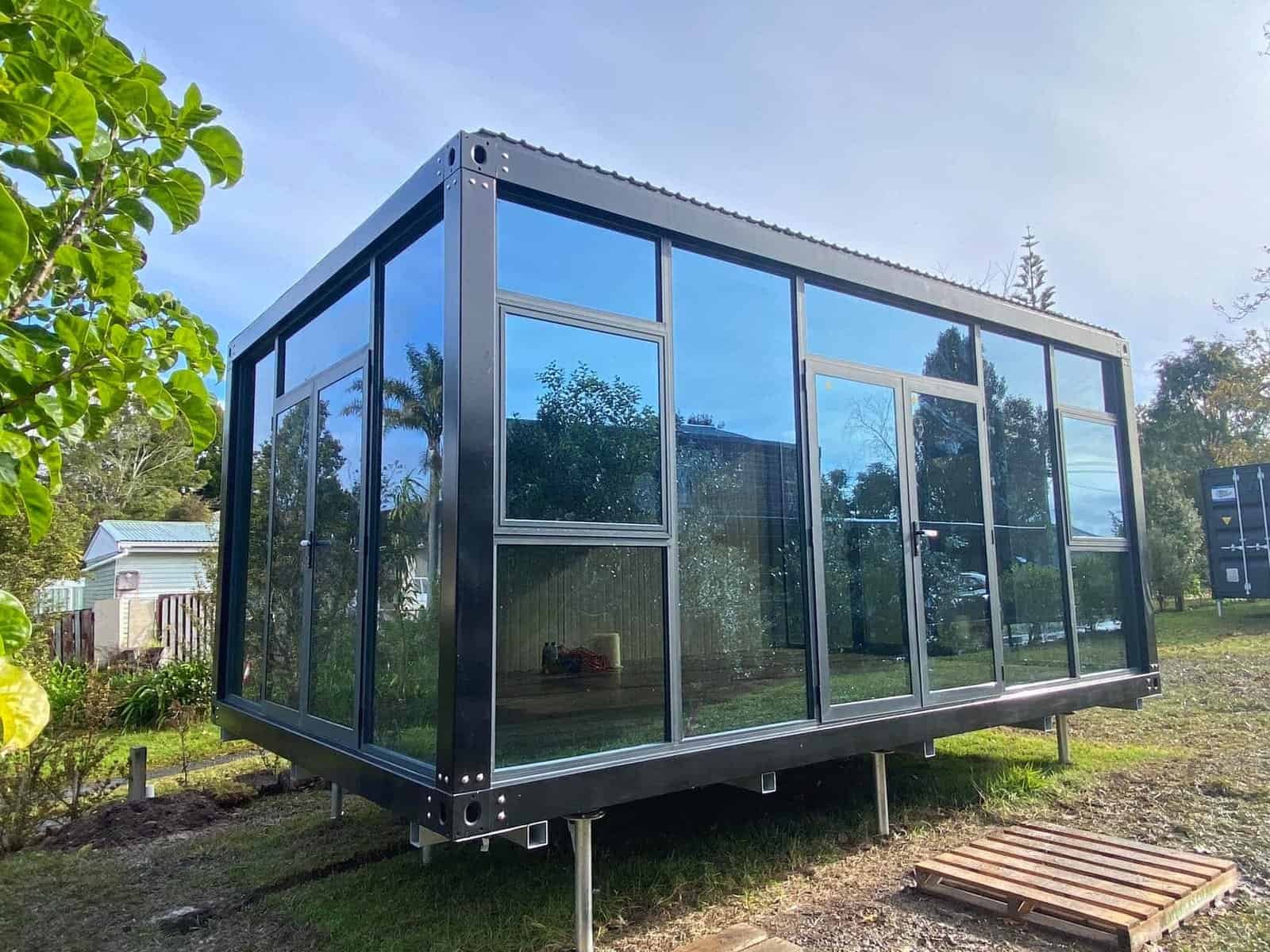

The 6 × 4 m Flat Pack Cabin with Glass Wrap Around is constructed using a robust steel framework and high-performance insulated panels, delivering durability, thermal efficiency, and long-term structural integrity.
Structural Frame:
Engineered from Q355 galvanised steel, providing excellent strength, corrosion resistance, and long-term durability for portable and semi-permanent installations.
Wall & Roof Panels:
Insulated panels featuring 50 mm EPS (Expanded Polystyrene) cores, offering effective thermal and acoustic insulation for year-round comfort. Front wall is made from double glazed insulated glass.
Floor System:
Heavy-duty magnesium oxide (MgO) flooring installed over 14-16 galvanised steel floor support beams, creating a solid, moisture-resistant, and fire-resistant base.
Windows:
Two double-glazed sliding windows with powder-coated aluminium frames, designed to enhance natural light, thermal performance, and durability.
Entry Door:
1.8 m wide double-glazed swing entry door with a powder-coated aluminium frame, providing a wide opening, smooth operation, and modern aesthetic.
Exterior: L6000 mm x W4000 mm x H2800 mm
Interior: L5900 mm × W3900 mm × H2650 mm
The 6 × 4 m Flat Pack Cabin with Glass Wrap Wall is constructed using a robust steel framework and high-performance insulated panels, delivering durability, thermal efficiency, and long-term structural integrity.
Structural Frame:
Engineered from Q355 galvanised steel, providing excellent strength, corrosion resistance, and long-term durability for portable and semi-permanent installations.
Wall & Roof Panels:
Insulated panels featuring 50 mm EPS (Expanded Polystyrene) cores, offering effective thermal and acoustic insulation for year-round comfort. Front wall is made from double glazed insulated glass.
Floor System:
Heavy-duty magnesium oxide (MgO) flooring installed over 14 galvanised steel floor support beams, creating a solid, moisture-resistant, and fire-resistant base.
Windows:
Two double-glazed sliding windows with powder-coated aluminium frames, designed to enhance natural light, thermal performance, and durability.
Entry Door:
1.8 m wide double-glazed swing entry door with a powder-coated aluminium frame, providing a wide opening, smooth operation, and modern aesthetic.
