Exterior: L7000 mm x W4000 mm x H2800 mm
Interior: L6900 mm × W3900 mm × H2650 mm

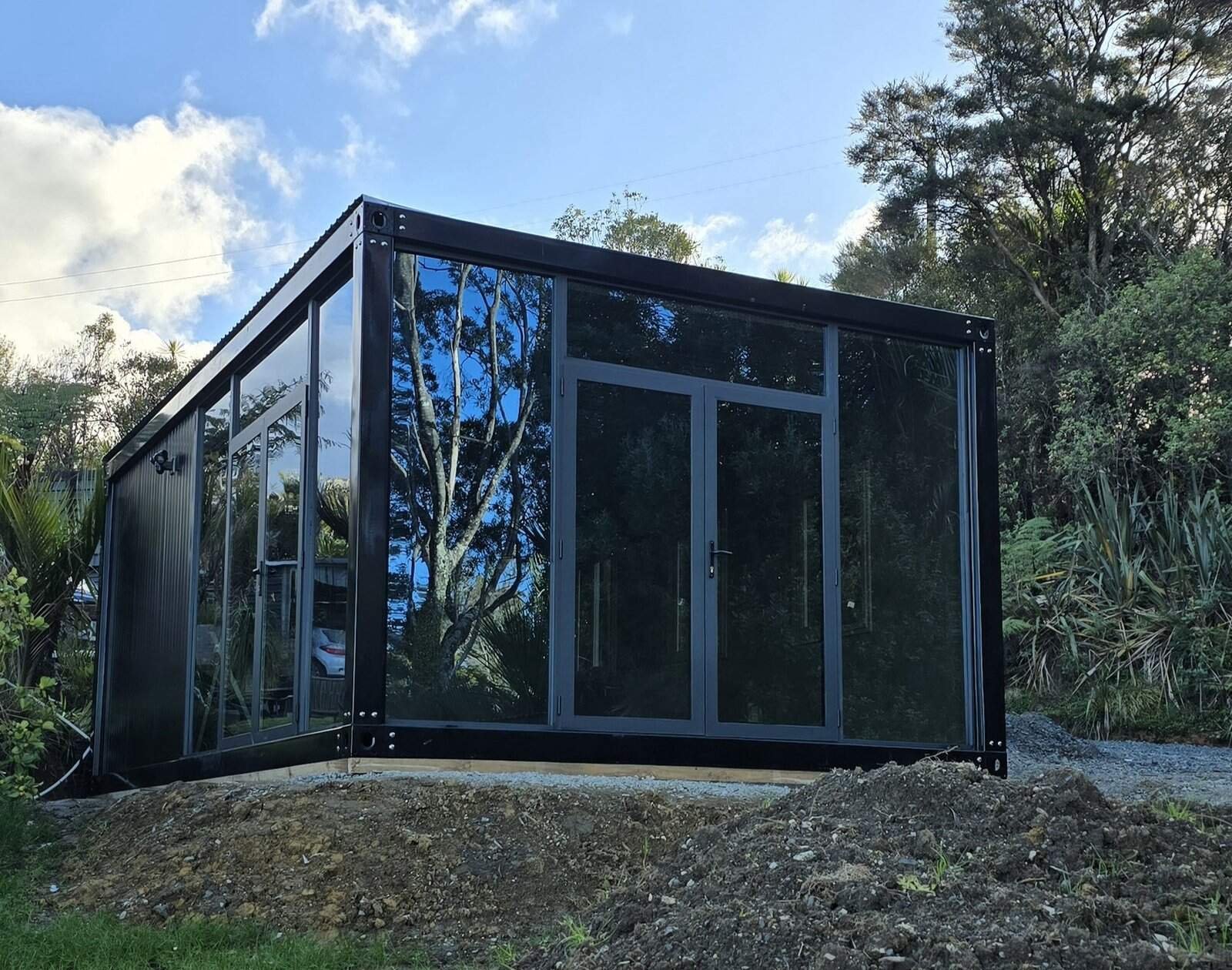

The 7 × 4 m Flat Pack Cabin with Glass Wrap Around wall is constructed using a robust steel framework and high-performance insulated panels, delivering durability, thermal efficiency, and long-term structural integrity.
Structural Frame:
Engineered from Q355 galvanised steel, providing excellent strength, corrosion resistance, and long-term durability for portable and semi-permanent installations.
Wall & Roof Panels:

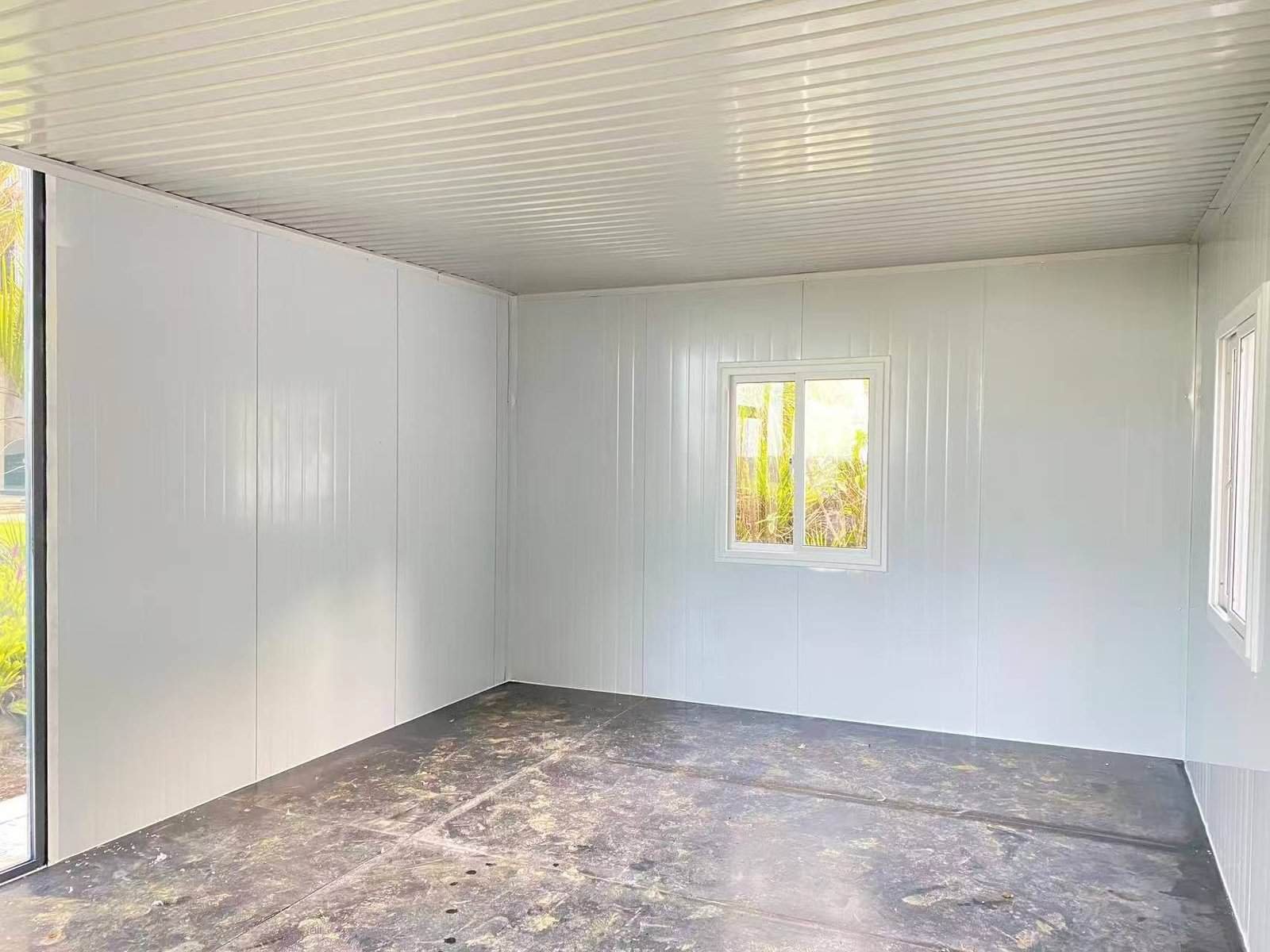

Insulated panels featuring 50 mm EPS (Expanded Polystyrene) cores, offering effective thermal and acoustic insulation for year-round comfort. Front wall is made from double glazed insulated glass.
Floor System:
Heavy-duty magnesium oxide (MgO) flooring installed over 17 galvanised steel floor support beams, creating a solid, moisture-resistant, and fire-resistant base.
Windows:

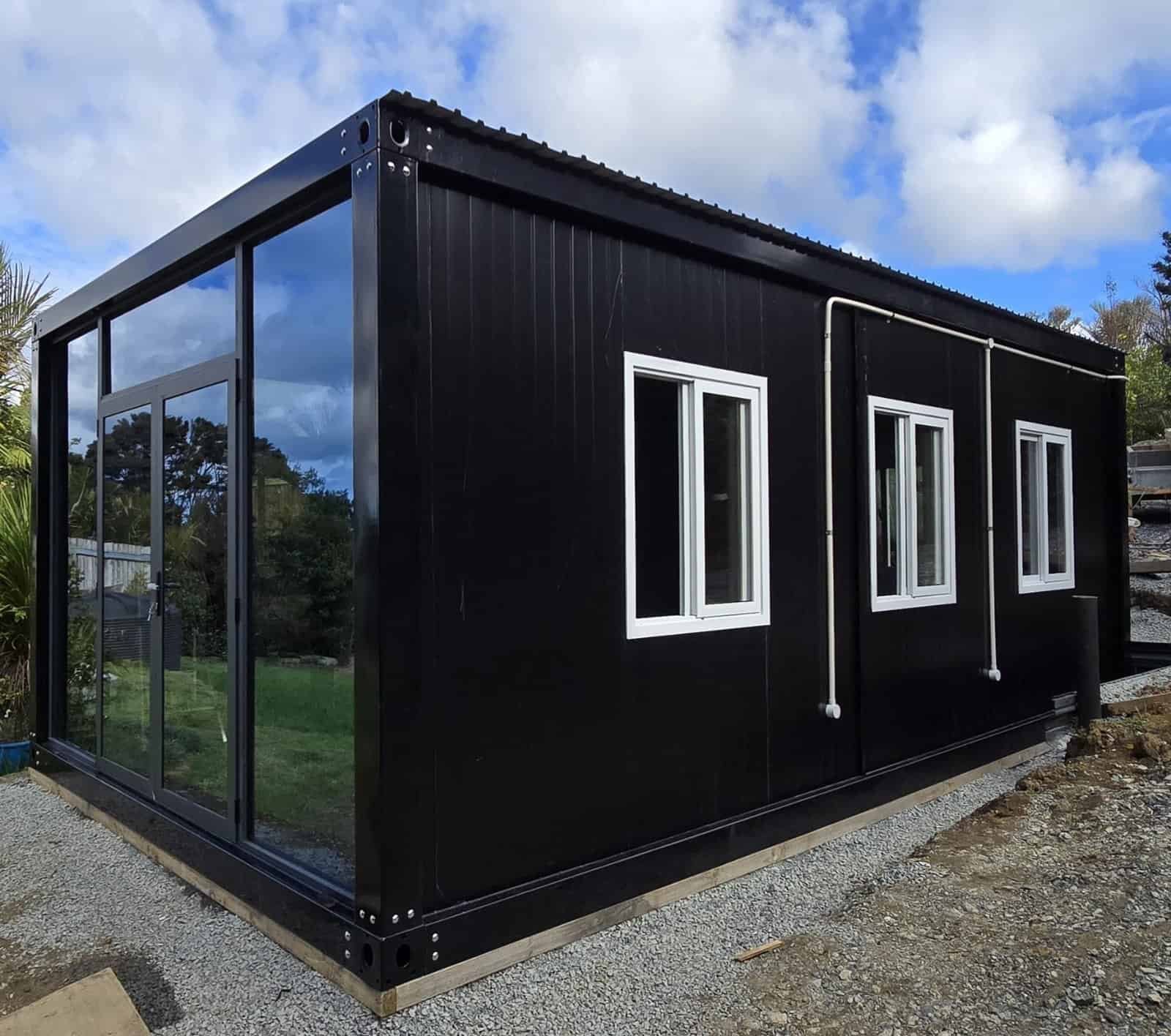

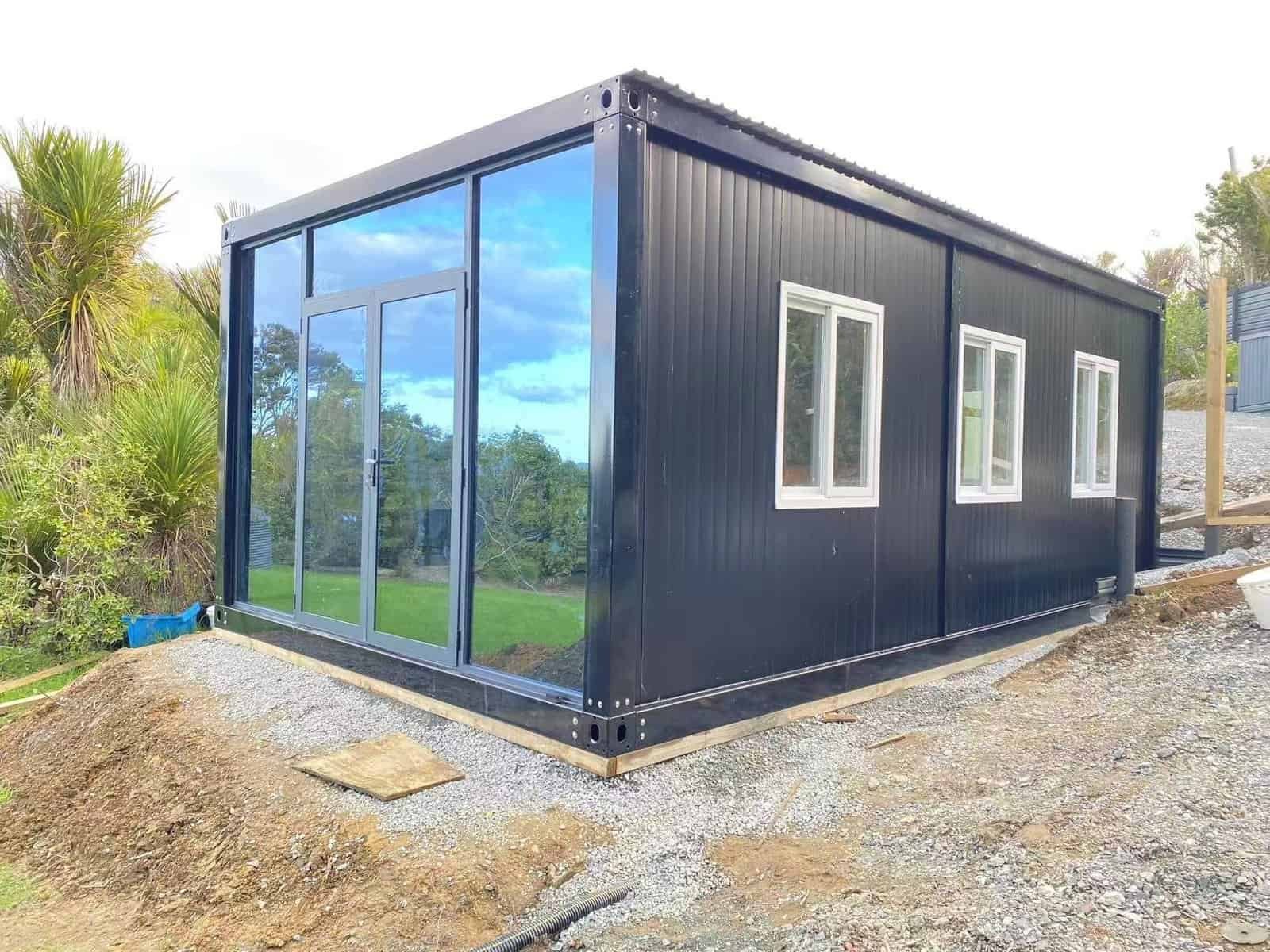

Four double-glazed sliding windows with powder-coated aluminium frames, designed to enhance natural light, thermal performance, and durability.
Entry Doors:

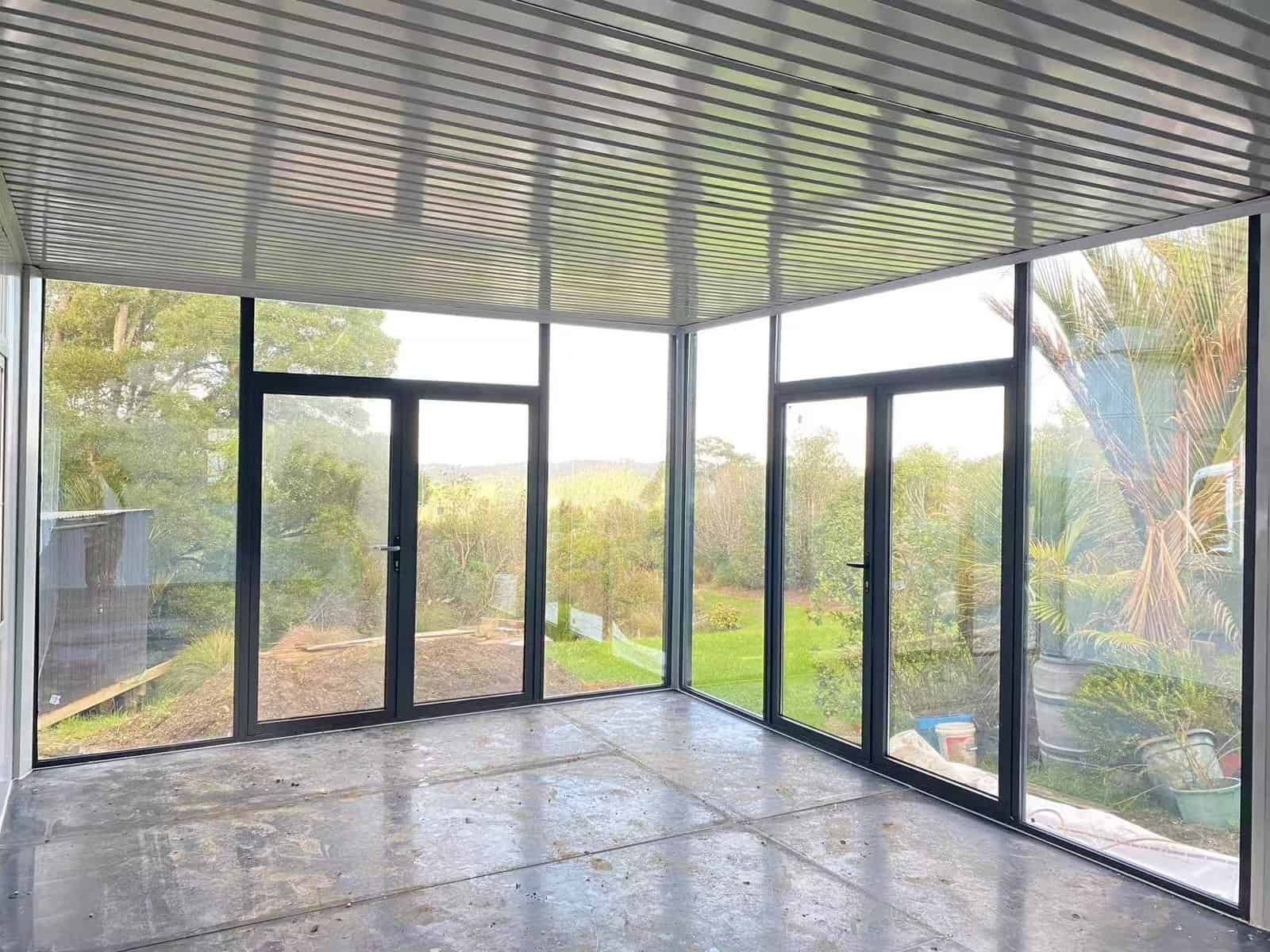

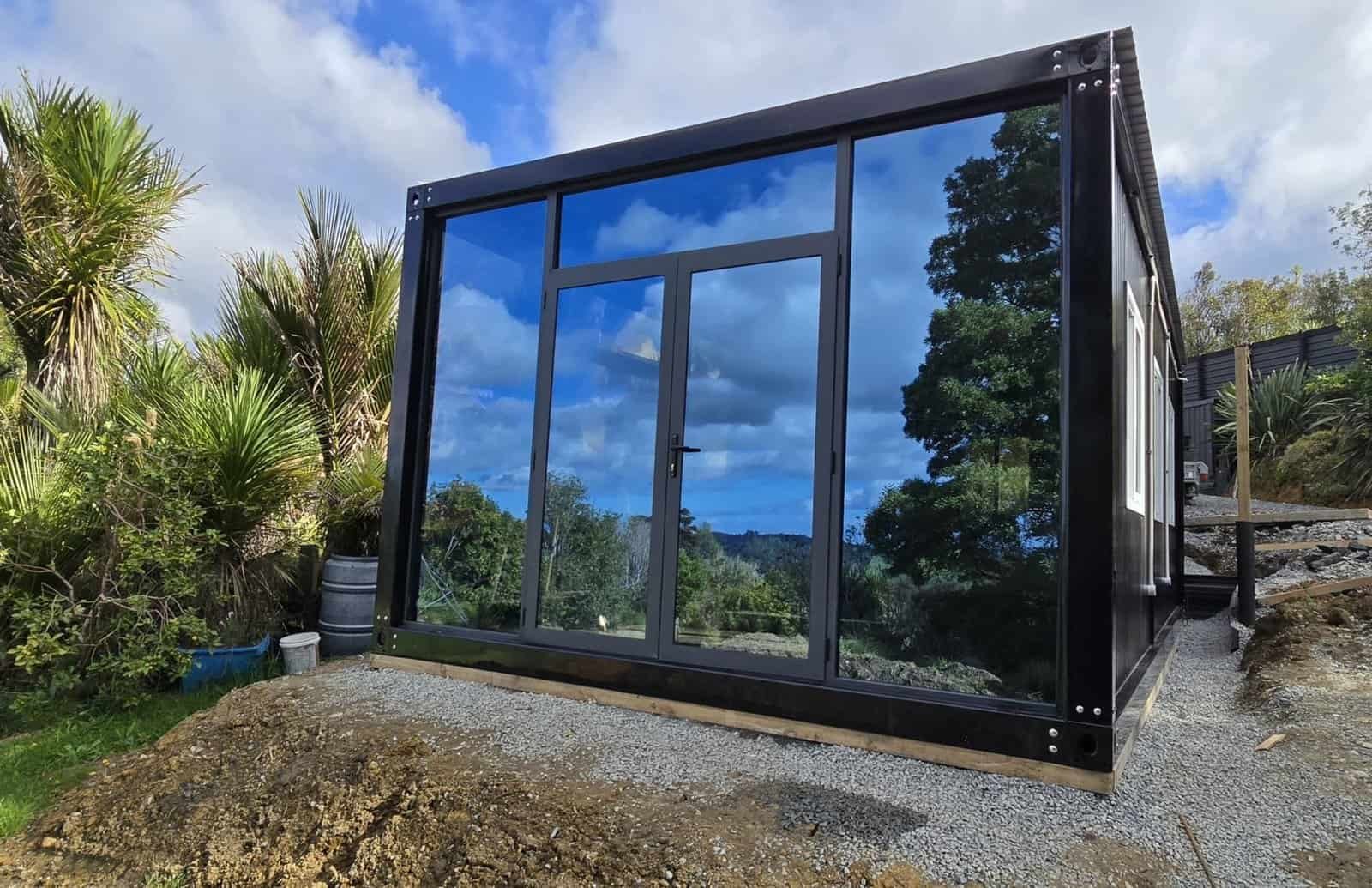

2 x 1.8 m wide double-glazed swing entry door with a powder-coated aluminium frame, one on each glass wall, providing wide openings, smooth operation, and modern aesthetic.
Exterior: L7000 mm x W4000 mm x H2800 mm
Interior: L6900 mm × W3900 mm × H2650 mm
The 7 × 4 m Flat Pack Cabin with Glass Wrap Wall is constructed using a robust steel framework and high-performance insulated panels, delivering durability, thermal efficiency, and long-term structural integrity.
Structural Frame:
Engineered from Q355 galvanised steel, providing excellent strength, corrosion resistance, and long-term durability for portable and semi-permanent installations.
Wall & Roof Panels:
Insulated panels featuring 50 mm EPS (Expanded Polystyrene) cores, offering effective thermal and acoustic insulation for year-round comfort. Front wall is made from double glazed insulated glass.
Floor System:
Heavy-duty magnesium oxide (MgO) flooring installed over 17 galvanised steel floor support beams, creating a solid, moisture-resistant, and fire-resistant base.
Windows:
Four double-glazed sliding windows with powder-coated aluminium frames, designed to enhance natural light, thermal performance, and durability.
Entry Doors:
2 x 1.8 m wide double-glazed swing entry door with a powder-coated aluminium frame, 1 on each glass wall, providing a wide opening, smooth operation, and modern aesthetic.
