Openings are selected for ventilation, security, and everyday usability.
Aluminium-framed entry door
Double-glazed 5 mm tinted glass to entry door
Awning-style caravan windows
Integrated flyscreens and blinds
Lockable hardware throughout
The EcoPod is designed to maximise usable internal space while maintaining a compact external footprint suitable for transport, delivery, and site placement.
External Dimensions: L5850 mm x W2240 mm x H2480 mm
Internal Dimensions: L5750 mm x W2050 mm x H2150 mm
Internal Floor Area: ~12 m²
Weight: Approx. 2100 kg
The EcoPod is constructed using an engineered steel frame and insulated panel system, providing strength, durability, and weather protection without the need for external cladding.
Galvanised steel structural frame and chassis with epoxy coating
Insulated composite wall and roof panel system
65 mm flame-retardant EPS insulation integrated within panels
Smooth, factory-finished external panel surface (no external cladding)
Integrated forklift pockets and roof crane lifting points
Adjustable galvanised steel feet with up to 50 mm height adjustment
Internal finishes are selected for durability, ease of maintenance, and everyday comfort.
3 mm anti-slip vinyl flooring throughout
Flame-retardant composite wall linings
Flame-retardant composite ceiling panels
Clean, neutral interior finish suitable for multiple uses

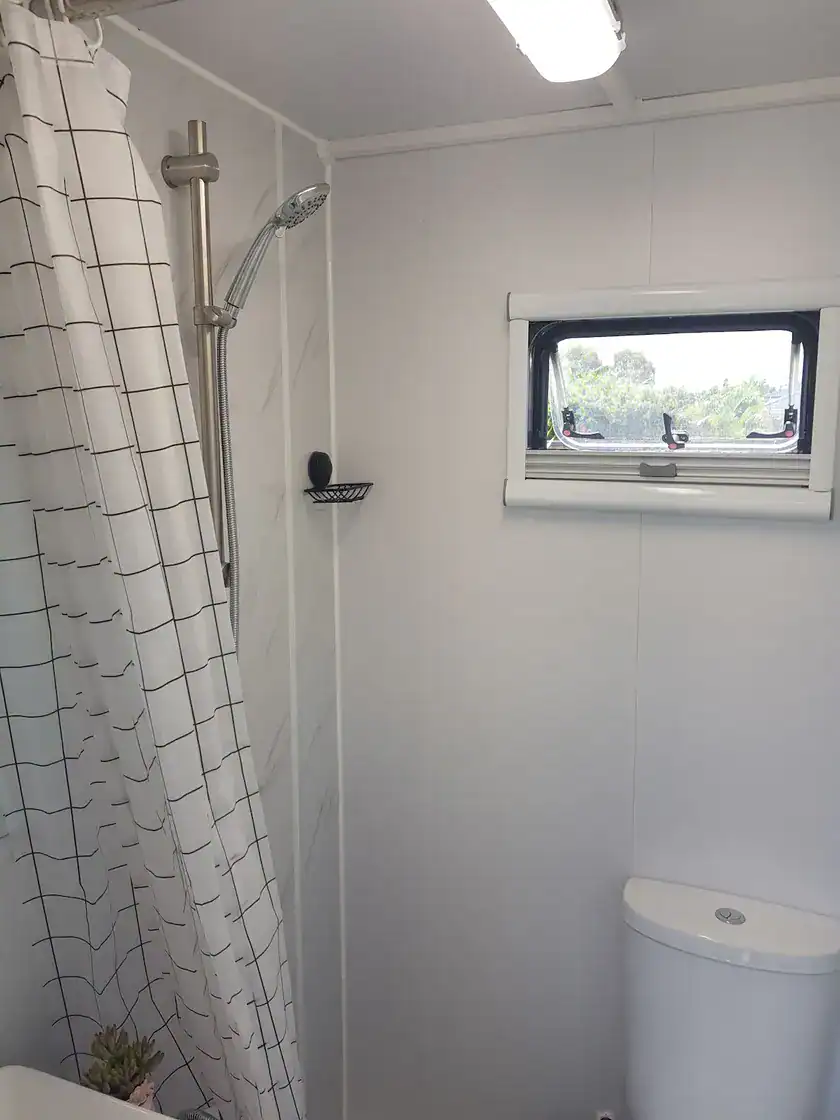

The EcoPod bathroom option provides a fully functional wet area designed for compact living.
Fully waterproof shower base
FRP composite wall panels to wet areas
Shower curtain and chrome shower fittings
Porcelain toilet suite
Mechanical extraction fan
Optional bifold bathroom entry door

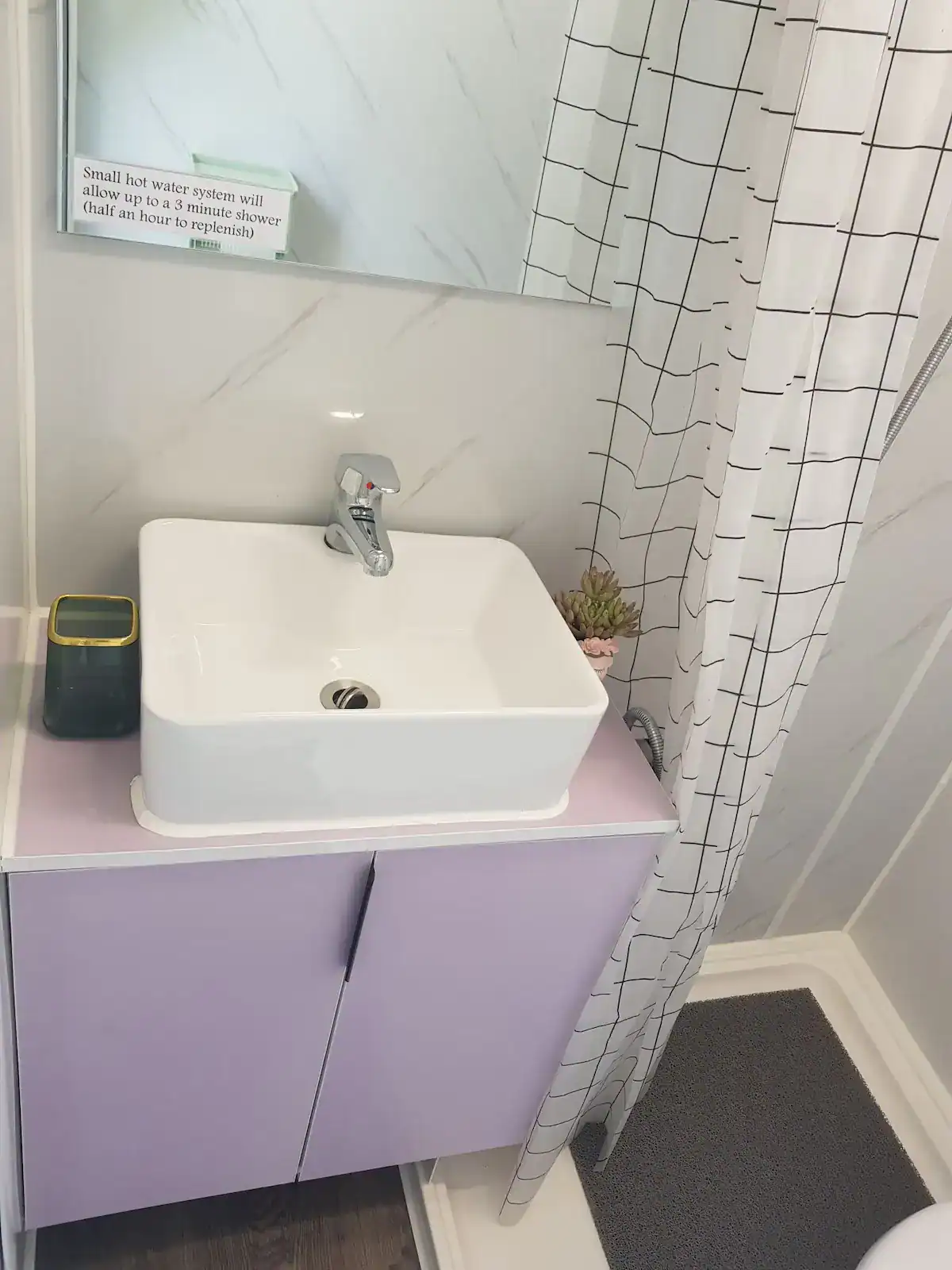

Vanity unit with porcelain basin, chrome mixer, soft-close cabinet and mirror

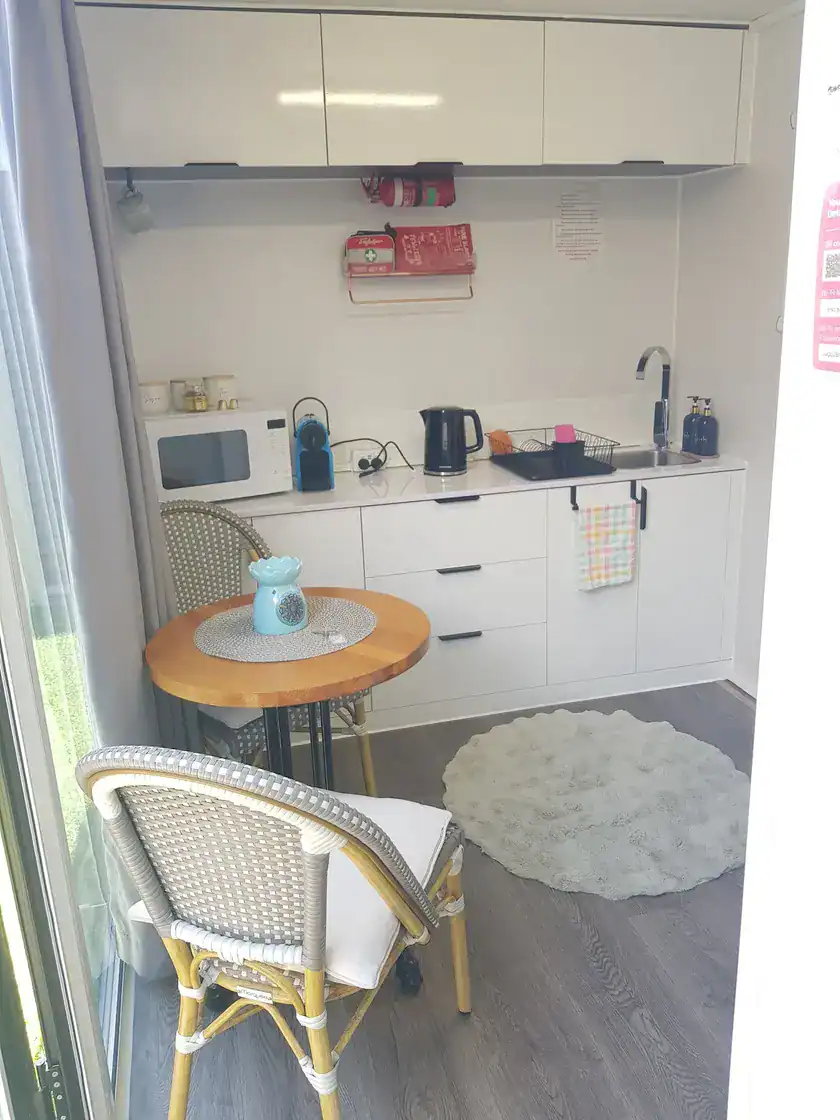

The EcoPod kitchen is designed to be compact yet highly functional, offering quality finishes and smart storage suited to everyday use or short-stay accommodation.
Soft-close cabinetry to both upper and lower cupboards
Laminate stone-look benchtop for durability and easy cleaning
Stainless steel sink with modern gooseneck mixer tap
Integrated storage designed for compact living
Optional in-built induction cooktop for a streamlined, all-electric setup
Openings are selected for ventilation, security, and everyday usability.
Aluminium-framed entry door
Double-glazed 5 mm tinted glass to entry door
Awning-style caravan windows
Integrated flyscreens and blinds
Lockable hardware throughout
Plumbing services are pre-installed to simplify on-site connection.
Hot and cold water lines pre-installed to rear wall
Flexible waste connections for shower, vanity and floor waste
Sewer outlet set in rear wall for toilet connection
All waste accessible from beneath the pod
The EcoPod is delivered electrically complete and ready for connection.
AS/NZS3000 compliant wiring and switchboard
Waterproof external 15 amp power inlet
Double GPO power points internally
LED downlights throughout
RCD safety switch installed
Each unit electrically tested prior to dispatch
The EcoPod is designed to maximise usable internal space while maintaining a compact external footprint suitable for transport, delivery, and site placement.
External Dimensions: L5850 mm x W2240 mm x H2480 mm
Internal Dimensions: L5750 mm x W2050 mm x H2150 mm
Internal Floor Area: ~12 m²
Weight: Approx. 2100 kg
The EcoPod is constructed using an engineered steel frame and insulated panel system, providing strength, durability, and weather protection without the need for external cladding.
Galvanised steel structural frame and chassis with epoxy coating
Insulated composite wall and roof panel system
65 mm flame-retardant EPS insulation integrated within panels
Smooth, factory-finished external panel surface (no external cladding)
Integrated forklift pockets and roof crane lifting points
Adjustable galvanised steel feet with up to 50 mm height adjustment
Internal finishes are selected for durability, ease of maintenance, and everyday comfort.
3 mm anti-slip vinyl flooring throughout
Flame-retardant composite wall linings
Flame-retardant composite ceiling panels
Clean, neutral interior finish suitable for multiple uses
The EcoPod bathroom option provides a fully functional wet area designed for compact living.
Fully waterproof shower base
FRP composite wall panels to wet areas
Shower curtain and chrome shower fittings
Porcelain toilet suite
Mechanical extraction fan
Optional bifold bathroom entry door
Optional vanity with porcelain basin, chrome mixer, soft-close cabinet and mirror
The EcoPod kitchen is designed to be compact yet highly functional, offering quality finishes and smart storage suited to everyday use or short-stay accommodation.
Soft-close cabinetry to both upper and lower cupboards
Laminate stone-look benchtop for durability and easy cleaning
Stainless steel sink with modern gooseneck mixer tap
Integrated storage designed for compact living
Optional in-built induction cooktop for a streamlined, all-electric setup
Openings are selected for ventilation, security, and everyday usability.
Aluminium-framed entry door
Double-glazed 5 mm tinted glass to entry door
Awning-style caravan windows
Integrated flyscreens and blinds
Lockable hardware throughout
Plumbing services are pre-installed to simplify on-site connection.
Hot and cold water lines pre-installed to rear wall
Flexible waste connections for shower, vanity and floor waste
Sewer outlet set in rear wall for toilet connection
All waste accessible from beneath the pod
The EcoPod is delivered electrically complete and ready for connection.
AS/NZS 3000 compliant wiring and switchboard
Waterproof external 15 amp power inlet
Double GPO power points internally
LED downlights throughout
RCD safety switch installed
Each unit electrically tested prior to dispatch
