External: L5900 mm x W6760 mm x H2550 mm

Internal: L5335 mm x W6270 mm x H2250 mm

Closed: L5900 mm x W2130 mm x H2550 mm

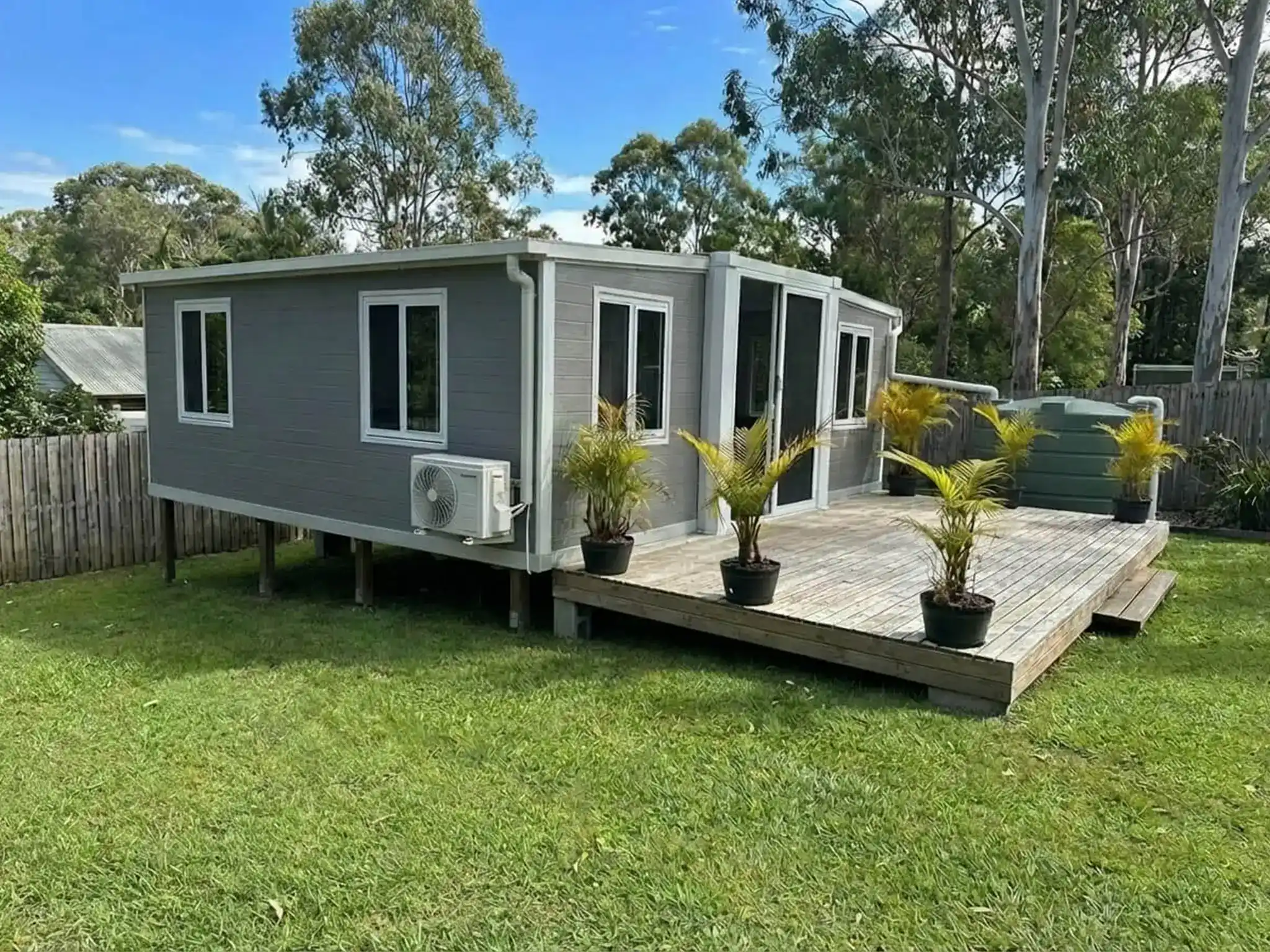

The Home20 Expander is built on a heavy-gauge galvanised steel frame, finished with a black epoxy coating for long-term structural performance. Insulated panel systems are used throughout to improve thermal comfort and reduce external noise.

Construction highlights:

• Heavy-gauge galvanised steel frame with epoxy-coated finish

• EPS (expanded polystyrene) sandwich panels to walls, roof & floor

• Exterior cladding applied over structural walls for added protection and visual finish

• Folding expander system designed for easy transport and efficient on-site deployment

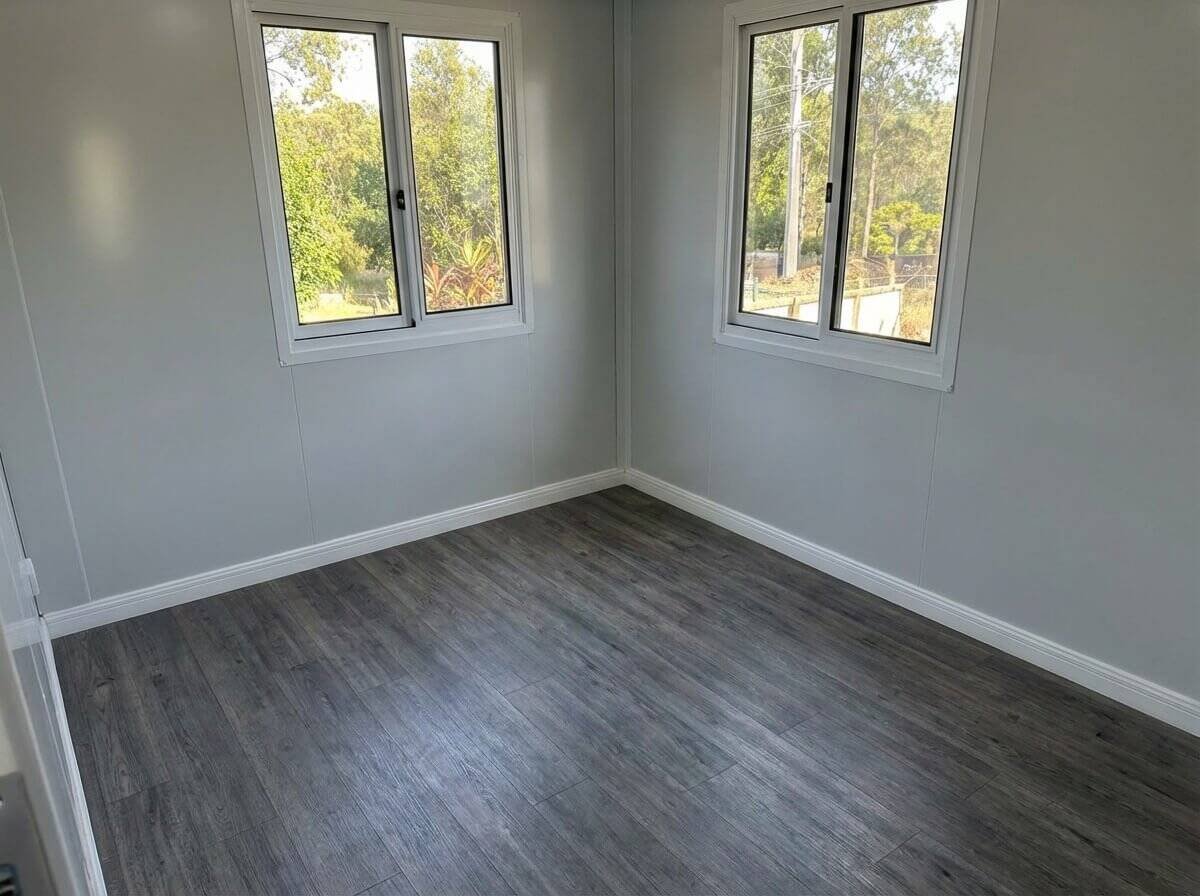

The Home20 Expander features a durable MgO structural floor base finished with premium timber-look PVC vinyl flooring, providing thermal insulation and resistance to moisture, rot, and insects. Internal walls are lined with composite board panels, while the ceiling is finished with wood fibreboard.

The 12 mm rigid PVC flooring delivers excellent strength and stability, with matching skirting trims and capping pieces included for a clean, finished interior.

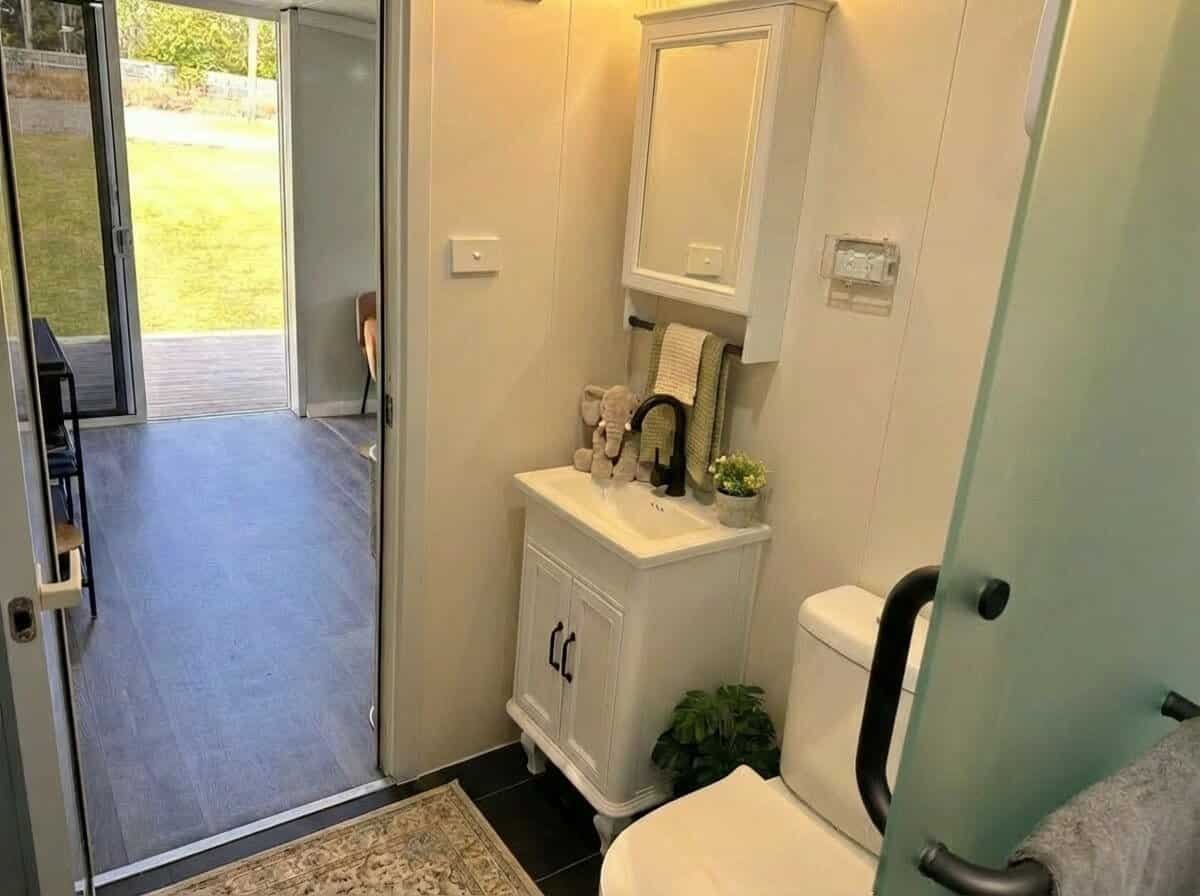

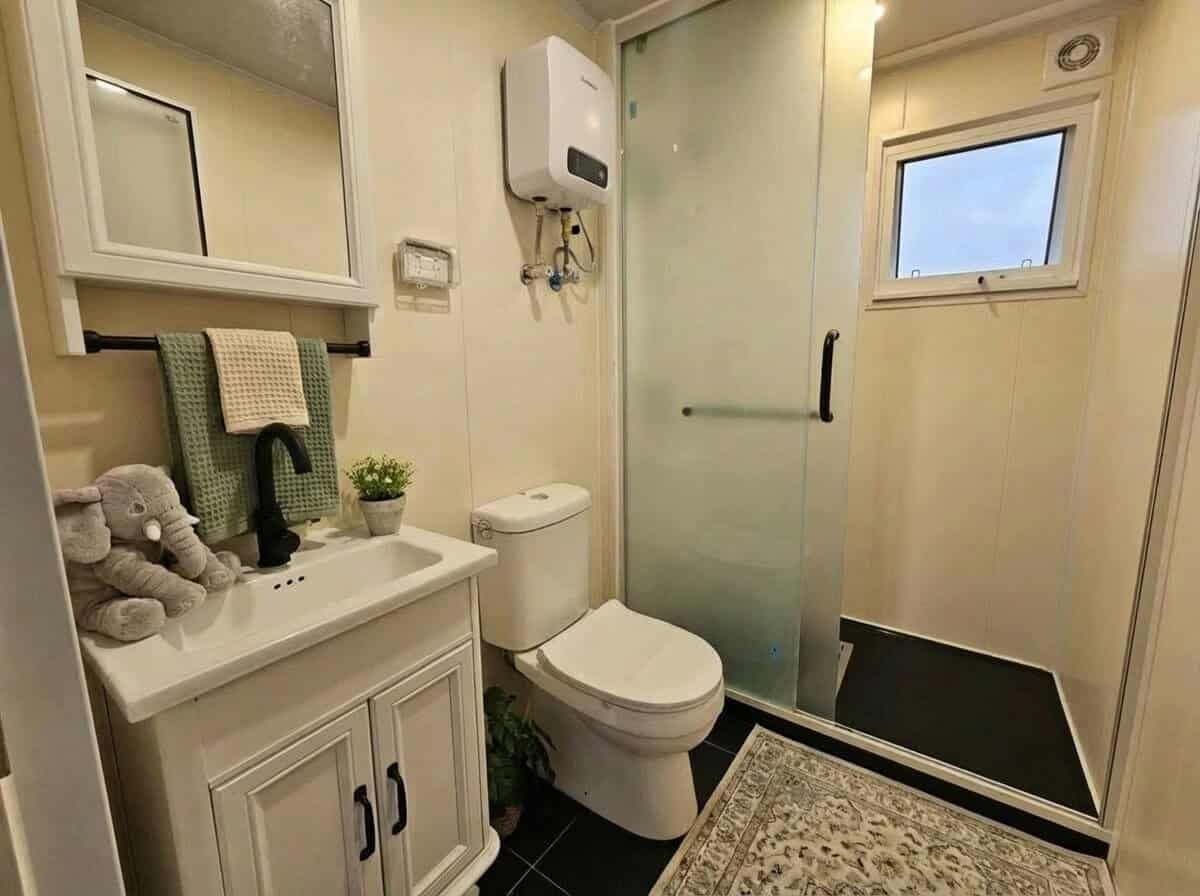

Just like the electrical system, the Home20 bathroom arrives largely pre-fitted, requiring only final connections from a licensed tradesperson once the unit is in place.

• Modern white ceramic toilet with a soft-close seat

• Exhaust fan pre-installed and wired to the main light switch

• Premium oversized shower featuring a sliding glass screen, chrome mixer tapware, a rainfall showerhead and an integrated hand-held spray

• Sleek vanity unit pre-fitted with chrome mixer tapware and a pop-up waste

• Overhead mirrored cabinet supplied for additional storage

• Front-load washing machine pre-installed for added convenience

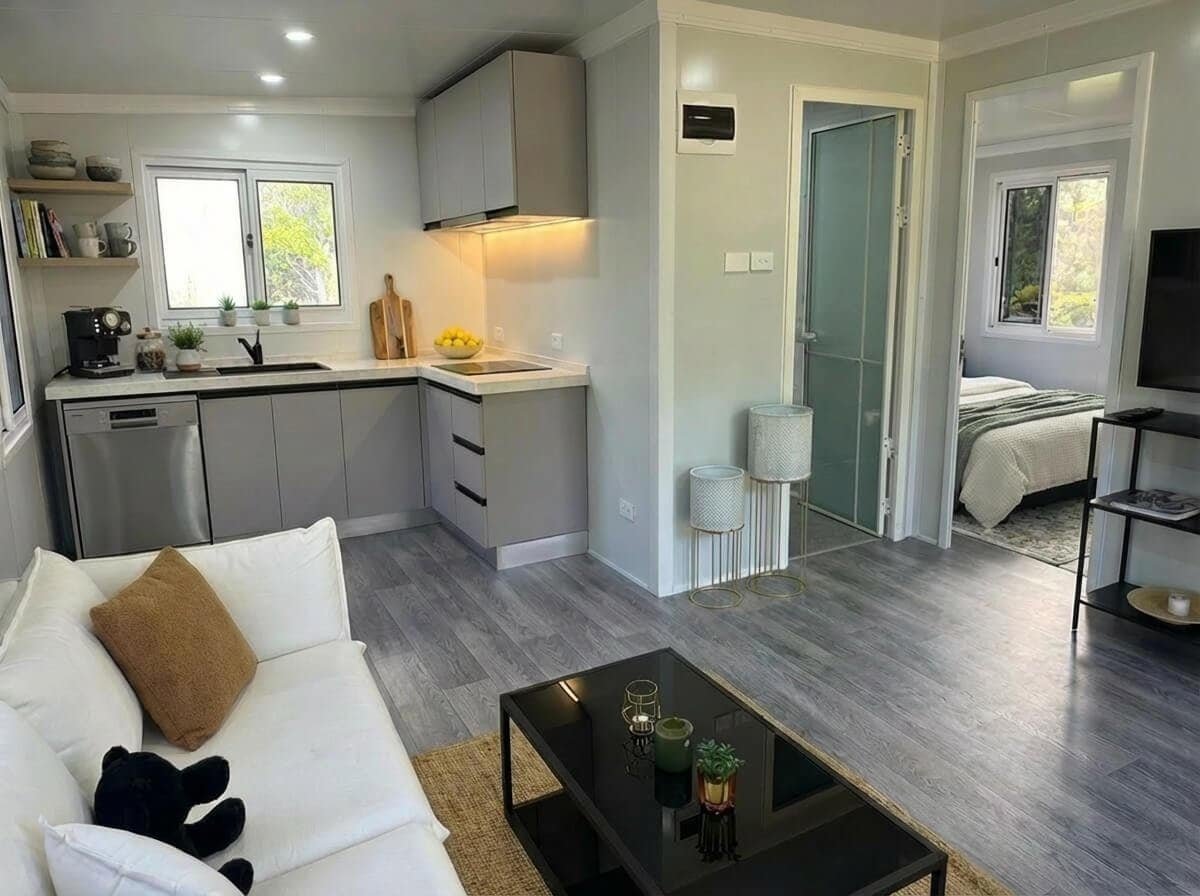

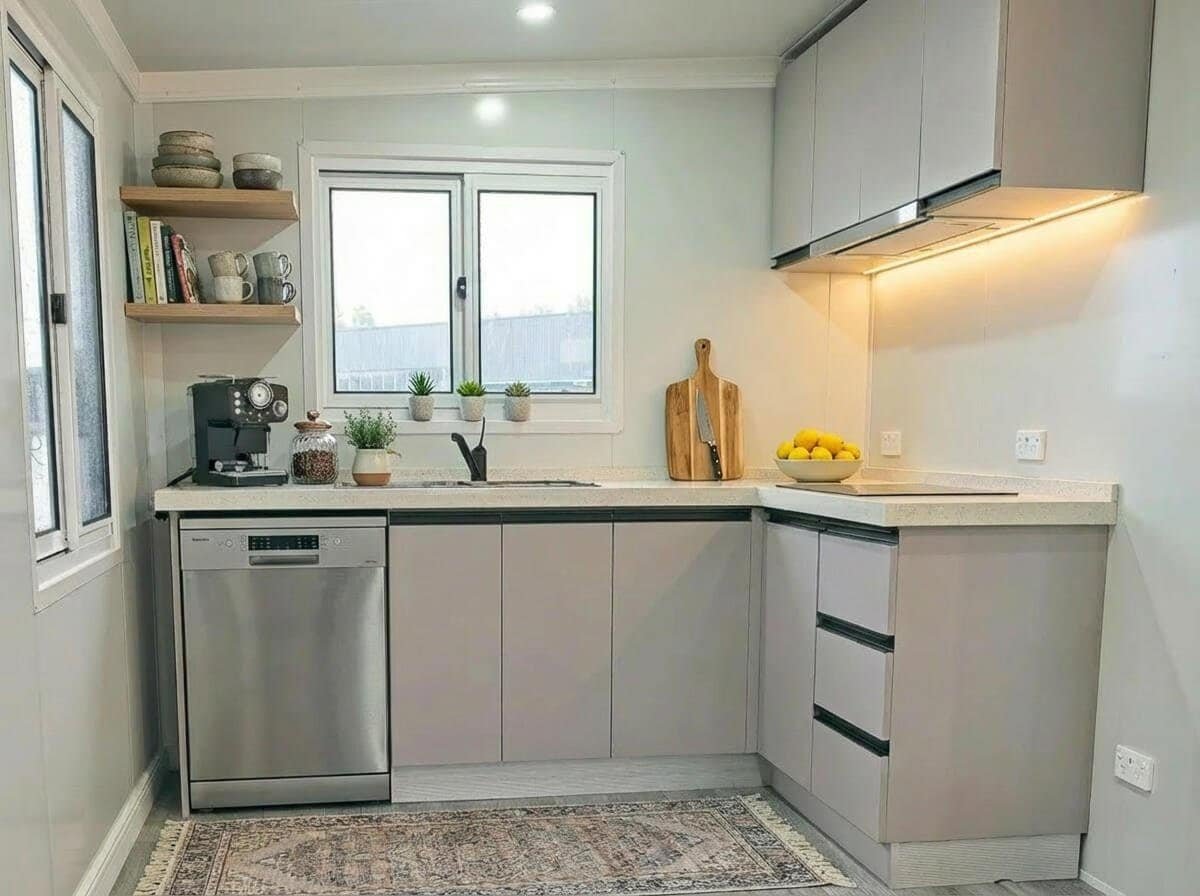

Each Home20 Expander includes a stylish L-shaped kitchen, delivered partially assembled and completed during installation. This layout maximises bench space while providing dedicated areas for both a refrigerator and a dishwasher.

• Stainless steel double-bowl sink paired with modern flick-mixer tapware

• White, silica-free quartz benchtop featuring a rear mini splash riser

• Floor-mounted cabinetry with a combination of cupboards and drawers for generous storage

• Matching kickplate and sleek door handles supplied

• Wall-mounted upper cabinetry provided, ready for installation

Regardless of the layout you choose, every Home20 Expander comes equipped with double-glazed, toughened glass exterior windows and a secure double sliding glass entry door as standard.

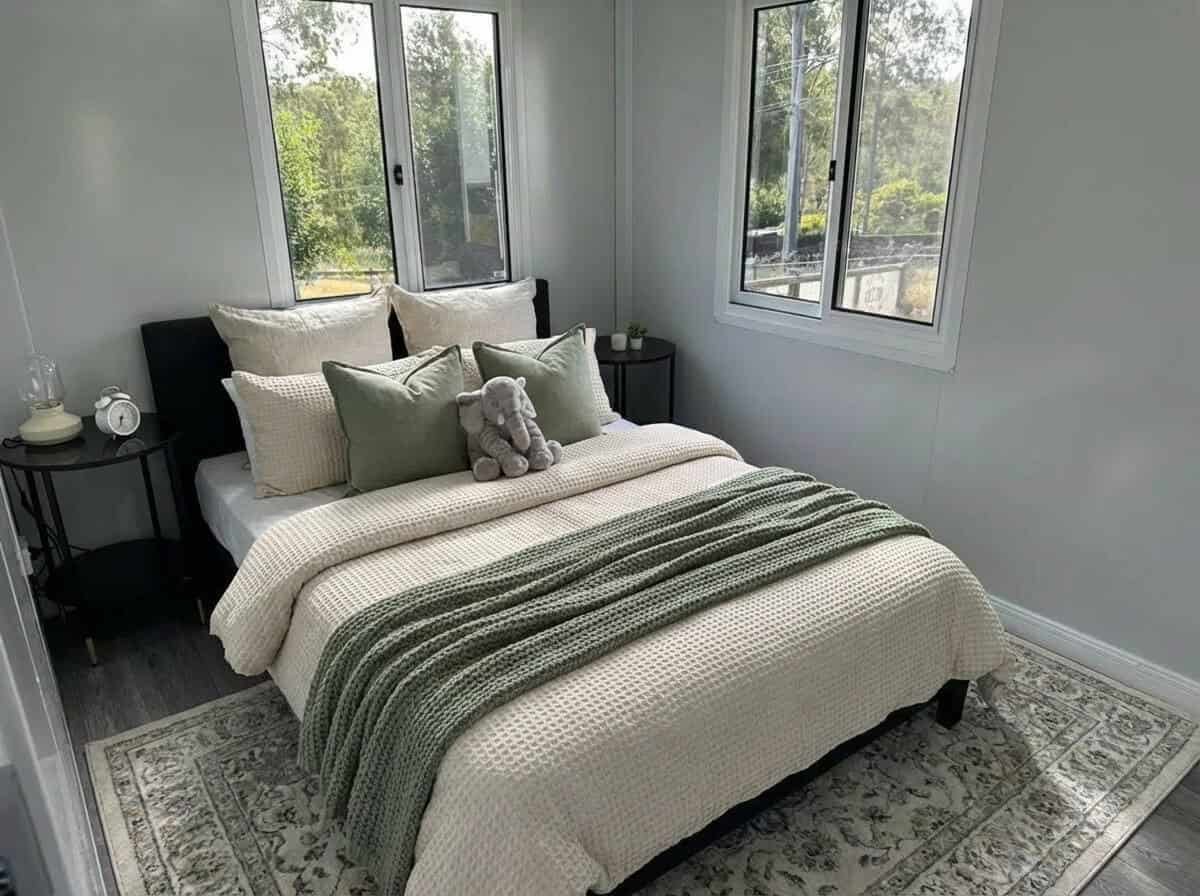

• Interior bedroom doors arrive pre-hung with the lock body already installed, ready for the handle set to be fitted

• Exterior windows feature durable aluminium frames and integrated mesh fly screens

• Front entry door supplied as a hinged aluminium-framed unit with a high-security locking system

• Bathroom fitted with a modern internal timber door for a clean architectural finish

Similar to the electrical setup, much of the plumbing in the Home20 Expander is pre-installed at the factory, requiring only final connection by a licensed plumber once the unit is positioned on-site. The 20ft design features separate grey water and waste outlets, both exiting from the central rear underside of the unit for straightforward compliance and connection.

• All taps, shower fittings, and plumbing fixtures carry WaterMark certification

• Kitchen and bathroom are supplied with pre-plumbed hot and cold water inlets, threaded and ready for connection

• Grey water is discharged through a 50mm PVC outlet

• Waste plumbing exits through a 100mm PVC outlet

• Kitchen sink plumbing is built using PVC piping, including dedicated inlets for a dishwasher and other appliances

The Home20 Expander is delivered mostly pre-wired, with only the final on-site connections required by a licensed electrician after installation. Each unit includes a centrally positioned Electrical Distribution Board (EDB) (where applicable), pre-fitted with quality circuit breakers. Light switches and power points are installed throughout the interior wherever factory placement is possible, ensuring practical and convenient access.

• Energy-efficient round LED ceiling lights supplied for all rooms

• Wiring is routed to the rear of the unit, ready for straightforward final connection

• Pre-installed EDB equipped with high-quality, compliant circuit breakers

• Electrical system engineered to support air-conditioning, electric hot-water systems, and other auxiliary appliances

• All electrical components meet Australian compliance requirements
