External: L11800 mm x W6760 mm x H2550 mm
Internal: L11640 x W6600 mm x H2250 mm
Closed: L11800 mm x W2260 mm x H2550 mm

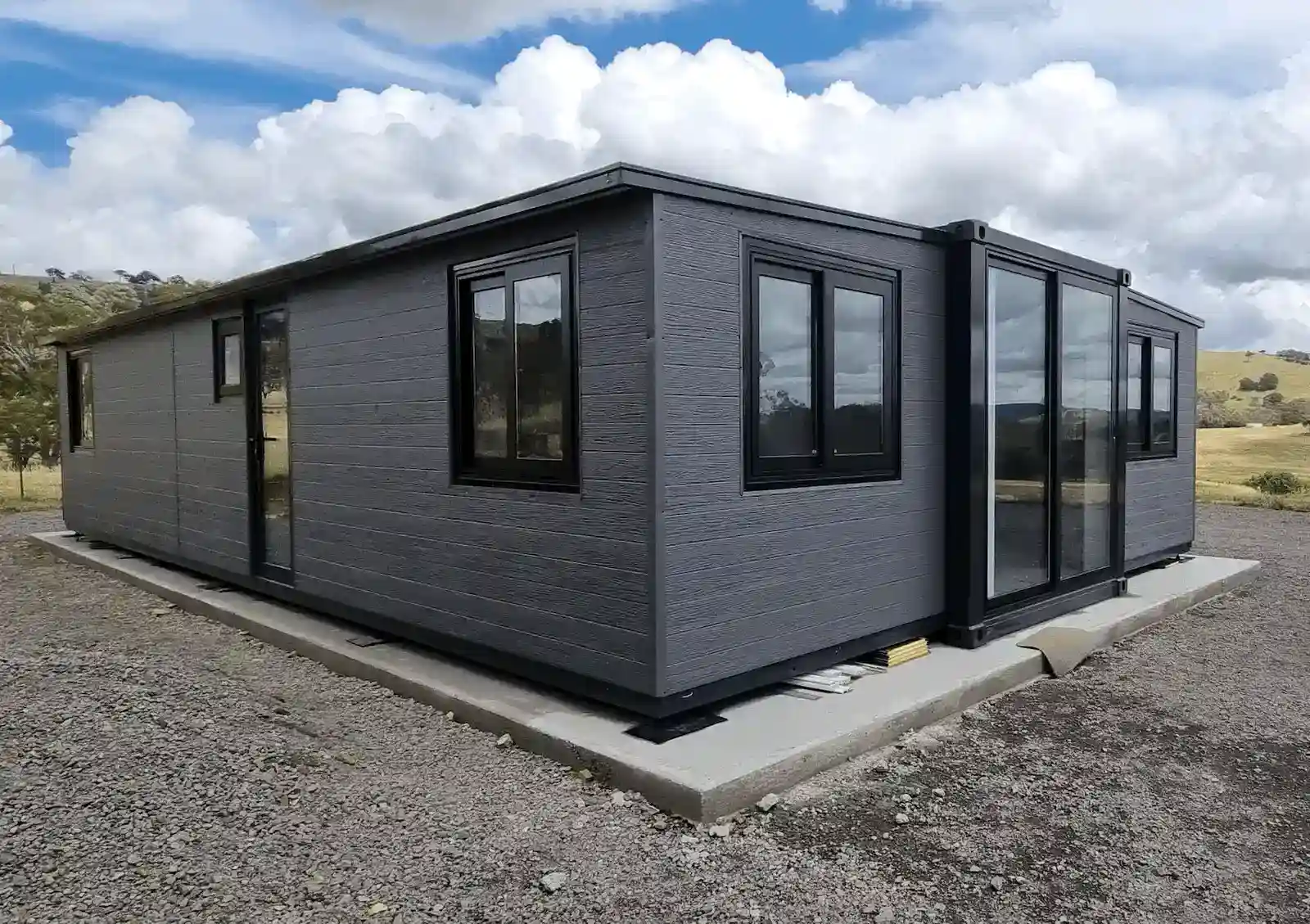

The Home40 Expander is built on a heavy-gauge galvanised steel frame, finished with a black epoxy coating for long-term structural performance. Insulated panel systems are used throughout to improve thermal comfort and reduce external noise.
Construction highlights:
Heavy-gauge galvanised steel frame with epoxy-coated finish
EPS (expanded polystyrene) sandwich panels to walls, roof & floor
Exterior cladding applied over structural walls for added protection and visual finish
Folding expander system designed for easy transport and efficient on-site deployment

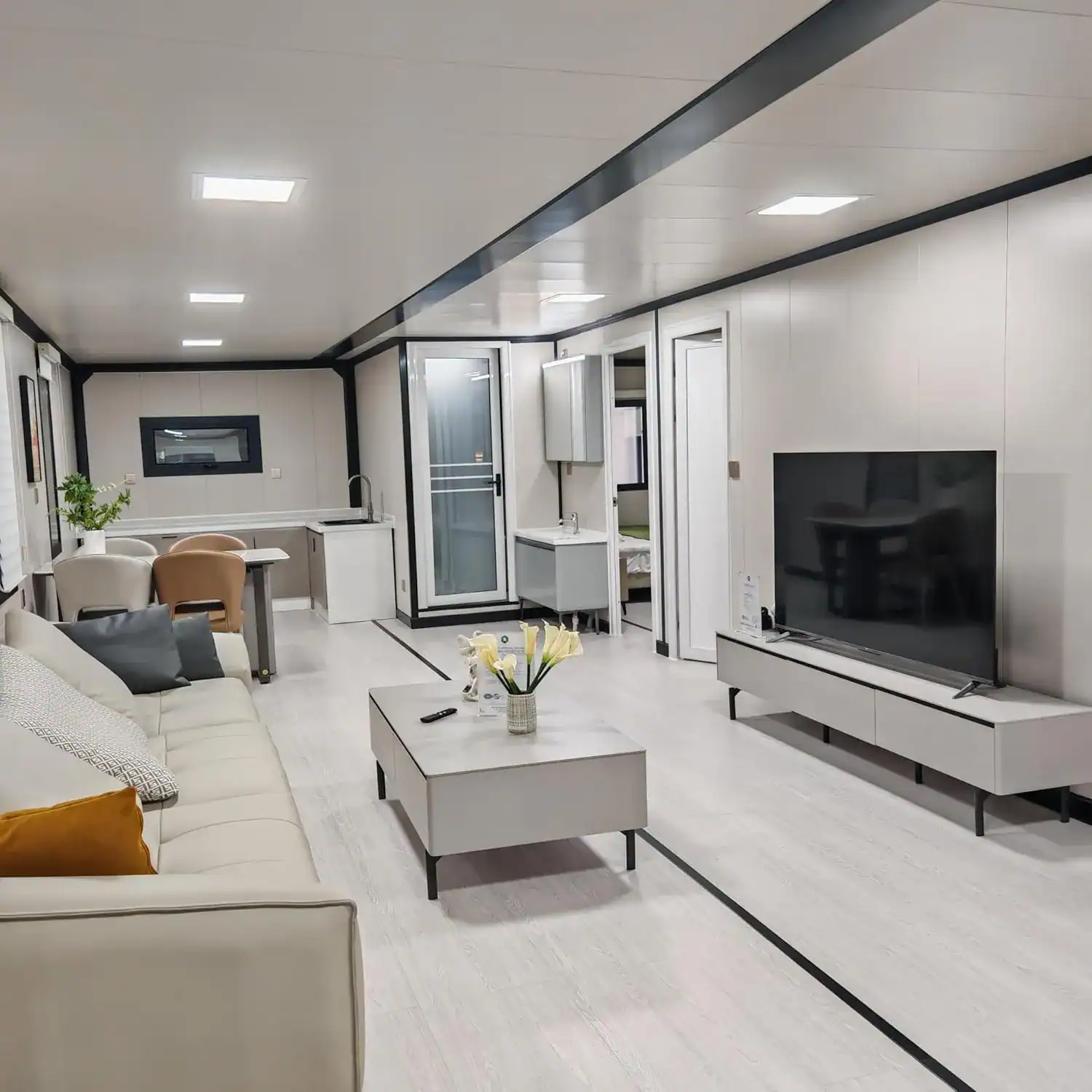

The Home40 Expander features a durable MgO structural floor base finished with premium timber-look PVC vinyl flooring, providing thermal insulation and resistance to moisture, rot, and insects. Internal walls are lined with composite board panels, while the ceiling is finished with wood fibreboard.
The 12 mm rigid PVC flooring delivers excellent strength and stability, with matching skirting trims and capping pieces included for a clean, finished interior.

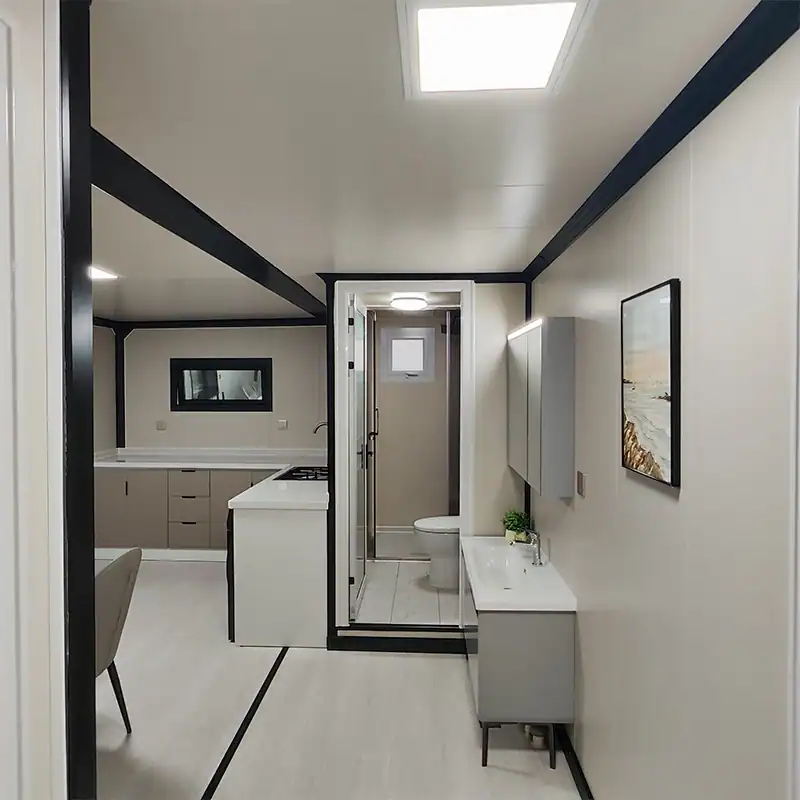

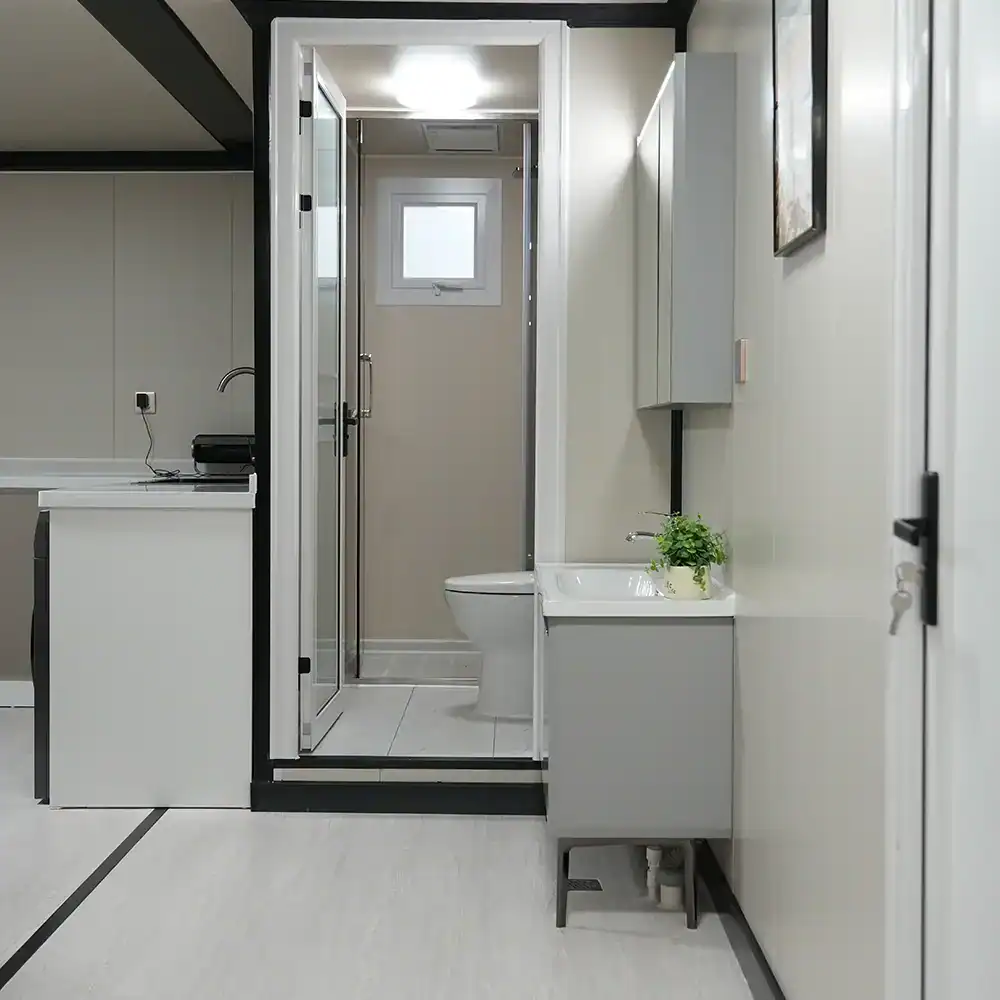

The Home40 bathroom arrives largely pre-fitted, requiring only final service connections by a licensed tradesperson once the unit is in place.
Modern white ceramic toilet with soft-close seat
Exhaust fan pre-installed and wired to the main light switch

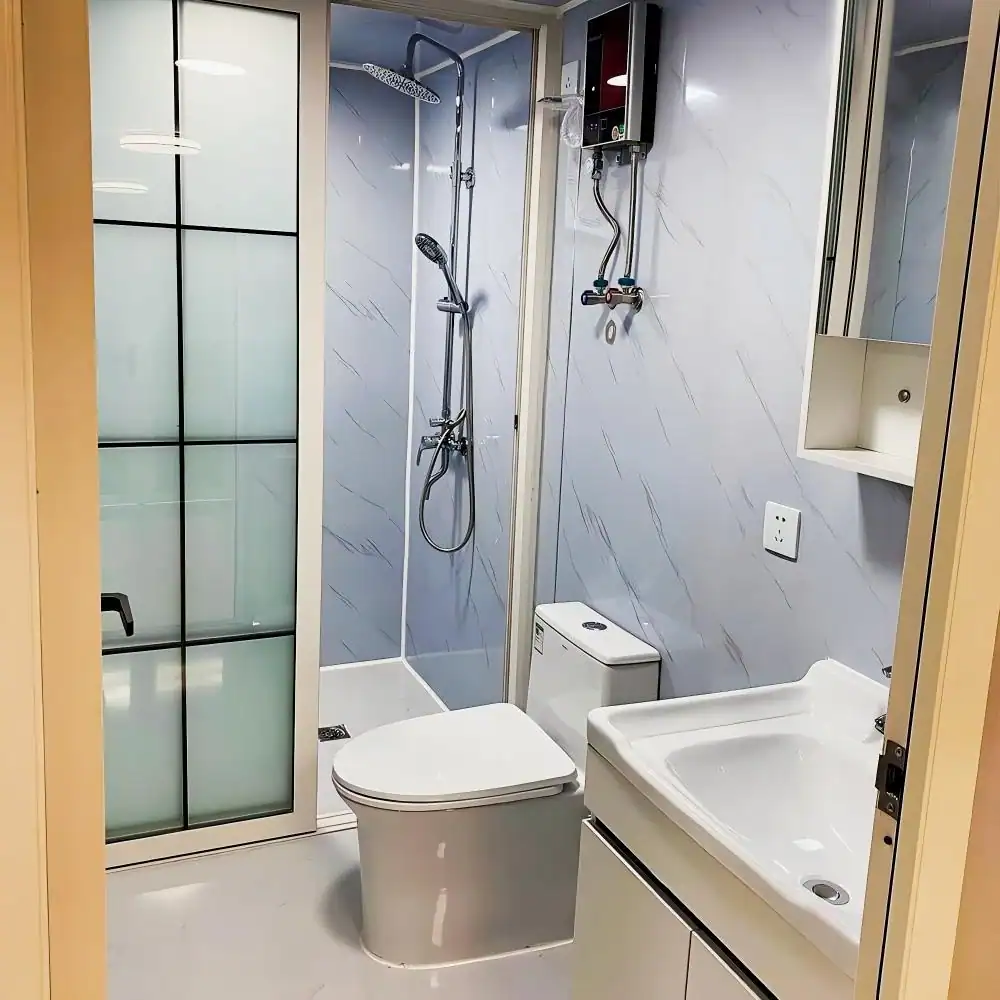

Premium oversized shower with frosted glass enclosure, sliding screen, chrome mixer tapware, dual rainfall shower heads and integrated hand-held spray
Sleek vanity unit pre-fitted with chrome mixer tapware and pop-up waste
Dedicated space and plumbing provision for a washing machine
Overhead mirrored cabinet supplied for additional storage

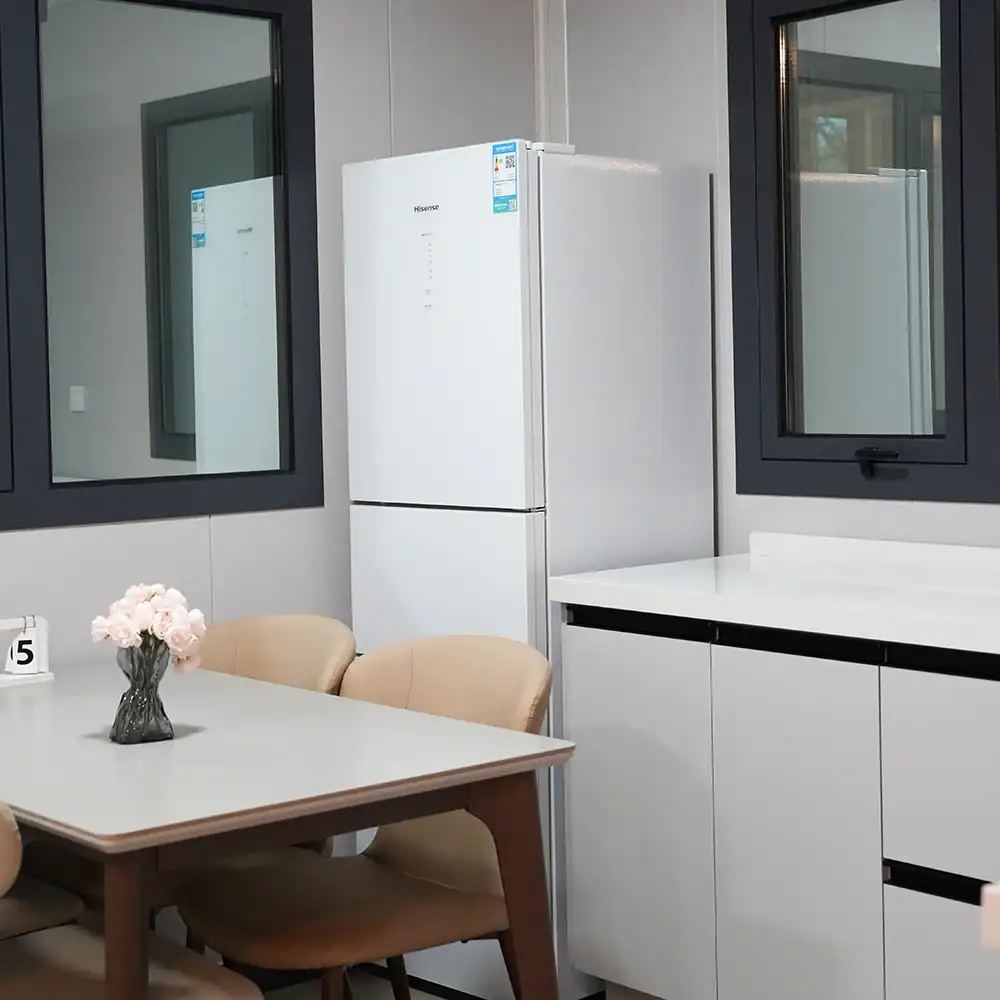

Each Home40 Expander includes a stylish L or U shaped kitchen, delivered partially assembled and completed during installation. This layout maximises bench space while providing dedicated areas for both a refrigerator and a dishwasher.
Stainless steel double-bowl sink paired with modern flick-mixer tapware
White, silica-free quartz benchtop featuring a rear mini splash riser

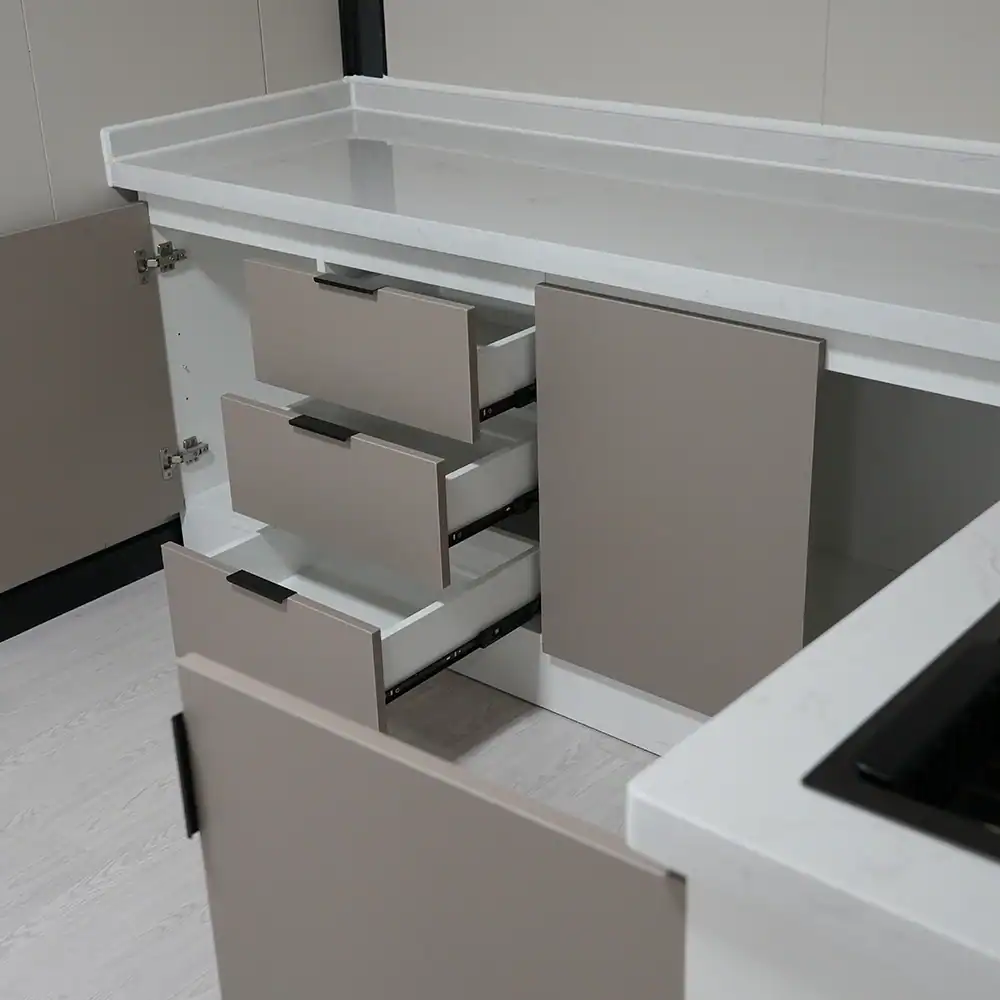

Floor-mounted cabinetry with a combination of cupboards and drawers for generous storage
Matching kickplate and sleek door handles supplied
Wall-mounted upper cabinetry provided, ready for installation
Regardless of the layout you choose, every Home40 Expander comes equipped with double-glazed, insulated glass exterior windows and a secure sliding glass entry door as standard.

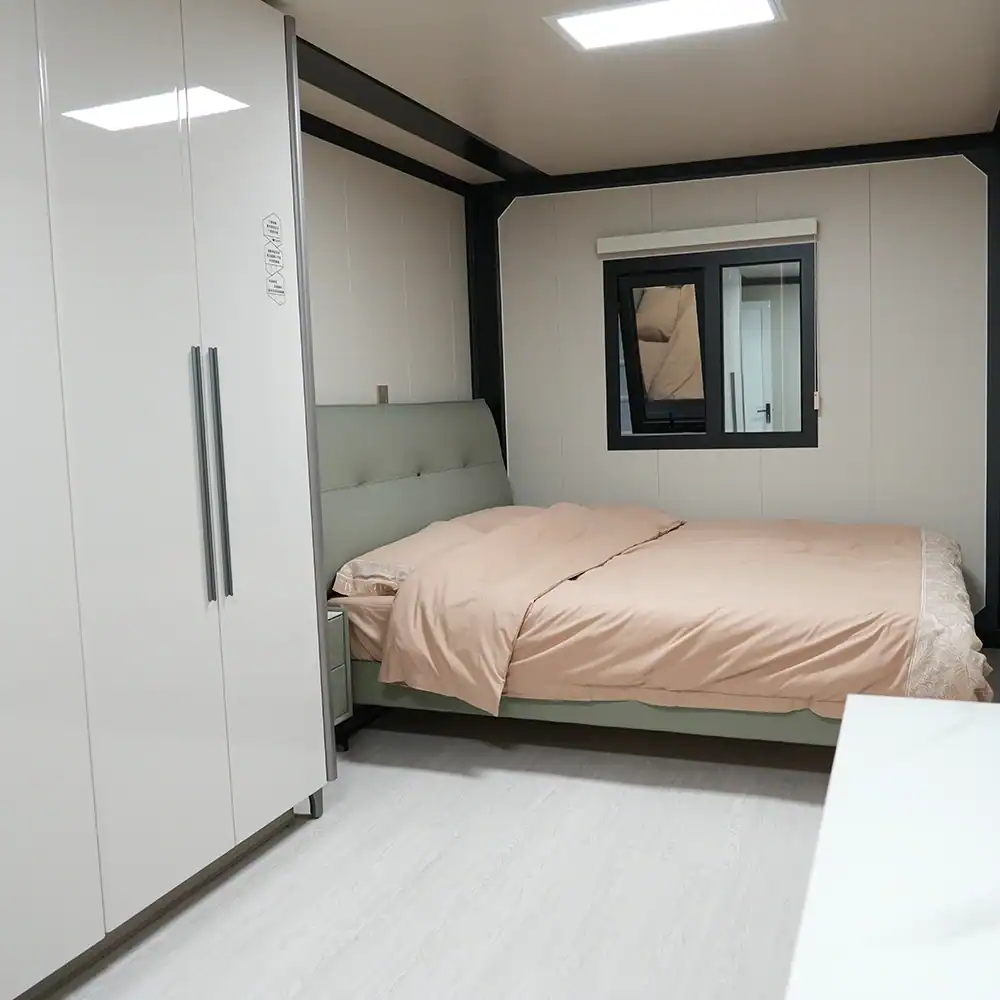

Interior bedroom doors arrive pre-hung with the lock body already installed, ready for the handle set to be fitted
Exterior windows feature durable aluminium frames and integrated mesh fly screens
Front entry door supplied as a aluminium-framed unit with a high-security locking system
Bathroom fitted with a modern frosted glass door for a clean architectural finish
Much of the plumbing in the Home40 Expander is pre-installed at the factory, requiring only final connection by a licensed plumber once the unit is positioned on-site. The 40ft design features separate grey water and waste outlets, both exiting from the central rear underside of the unit for straightforward compliance and connection.
All taps, shower fittings, and plumbing fixtures carry WaterMark certification
Kitchen and bathroom are supplied with pre-plumbed hot and cold water inlets, threaded and ready for connection
Grey water is discharged through a 50mm PVC outlet
Waste plumbing exits through a 100mm PVC outlet
Kitchen sink plumbing is built using PVC piping, including dedicated inlets for a dishwasher and other appliances
The Home40 Expander is delivered mostly pre-wired, with only the final on-site connections required by a licensed electrician after installation. Each unit includes a centrally positioned Electrical Distribution Board (EDB) (where applicable), pre-fitted with quality circuit breakers. Light switches and power points are installed throughout the interior wherever factory placement is possible, ensuring practical and convenient access.

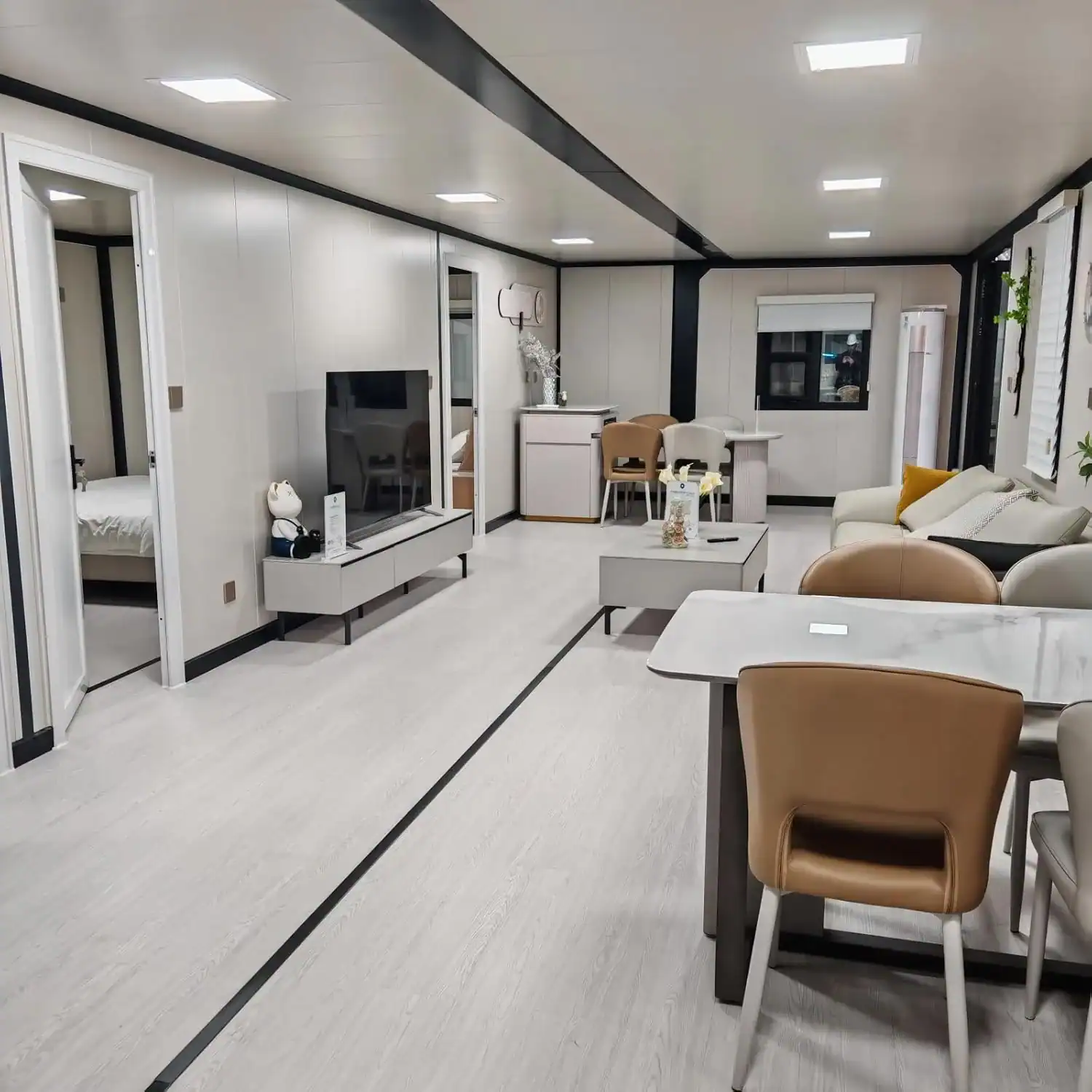

Energy-efficient round LED ceiling lights supplied for all rooms
Wiring is routed to the rear of the unit, ready for straightforward final connection
Pre-installed EDB equipped with high-quality, compliant circuit breakers
Electrical system engineered to support air-conditioning, electric hot-water systems, and other auxiliary appliances
All electrical components meet Australian compliance requirements
