External: L5900 mm x W3900 mm x H2500 mm
Internal: L5600 mm x W3700 mm x H2300 mm
Closed: L5900mm x W2250 x H2500mm

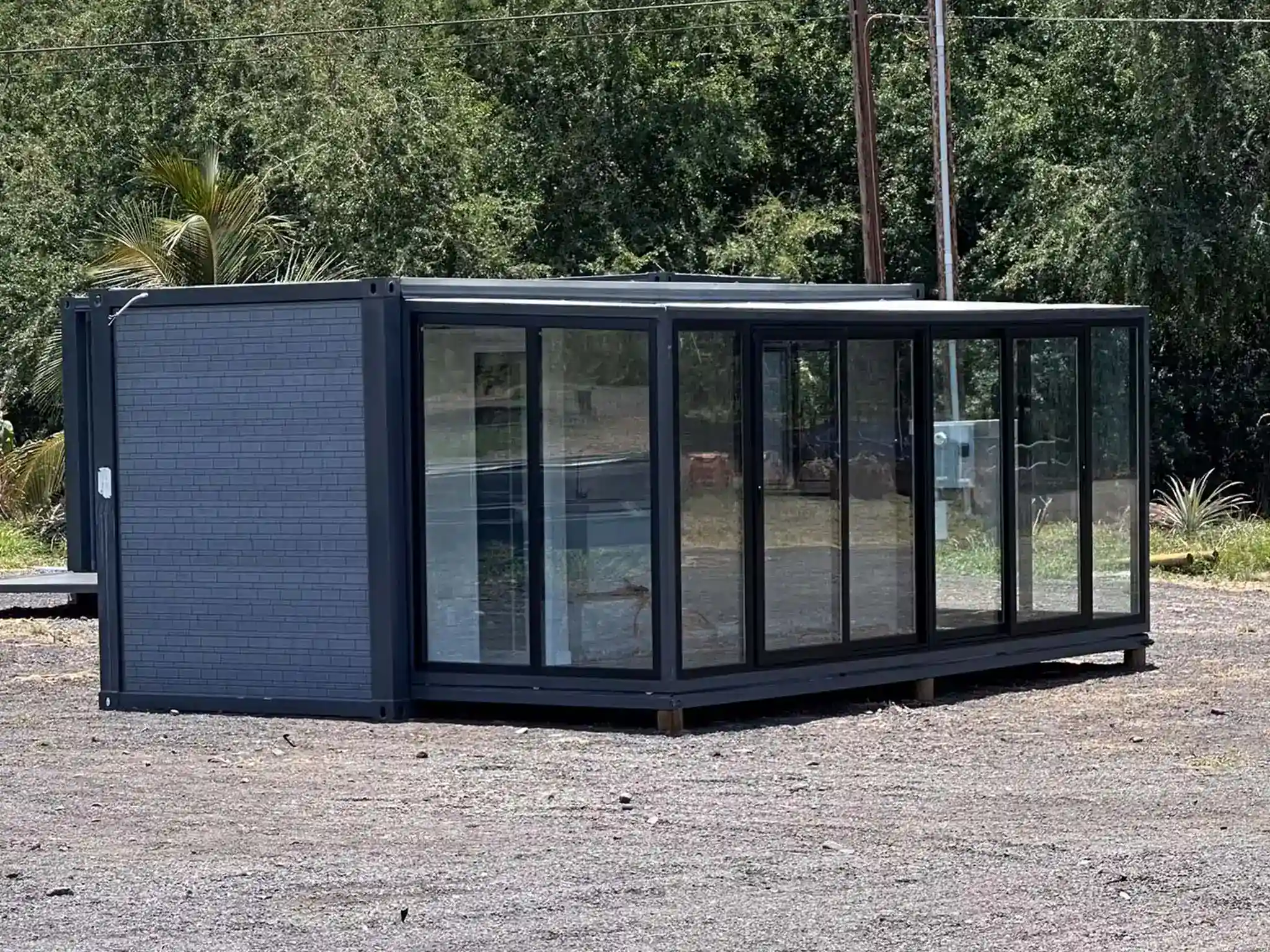

The Panorama 20ft expander is built on a heavy-duty galvanised steel frame, finished in a durable Grand Grey epoxy coating. The wall and slide-out ceiling systems use EPS (expanded polystyrene) sandwich panels, chosen for their strong thermal and acoustic performance.
• Contemporary exterior cladding is supplied and installed as standard
• The main roof section features steel cladding with integrated glass-wool insulation for improved temperature control
• External walls and the slide-out ceiling are constructed from 50mm EPS sandwich panels
• A purpose-designed sliding frame system allows the Panorama to remain fully portable and transportable
Each Panorama 20ft expander is supplied with magnesium oxide (MgO) composite flooring, finished with a durable timber-look vinyl surface. MgO flooring is selected for its excellent thermal performance, moisture resistance, and resistance to rot and insects, making it well suited to portable and expandable structures.
• MgO board flooring is used for its strength, stability, and moisture resistance
• Floor skirting trims and capping pieces are included as standard
• 8mm timber-look PVC vinyl flooring is factory installed over the MgO substrate

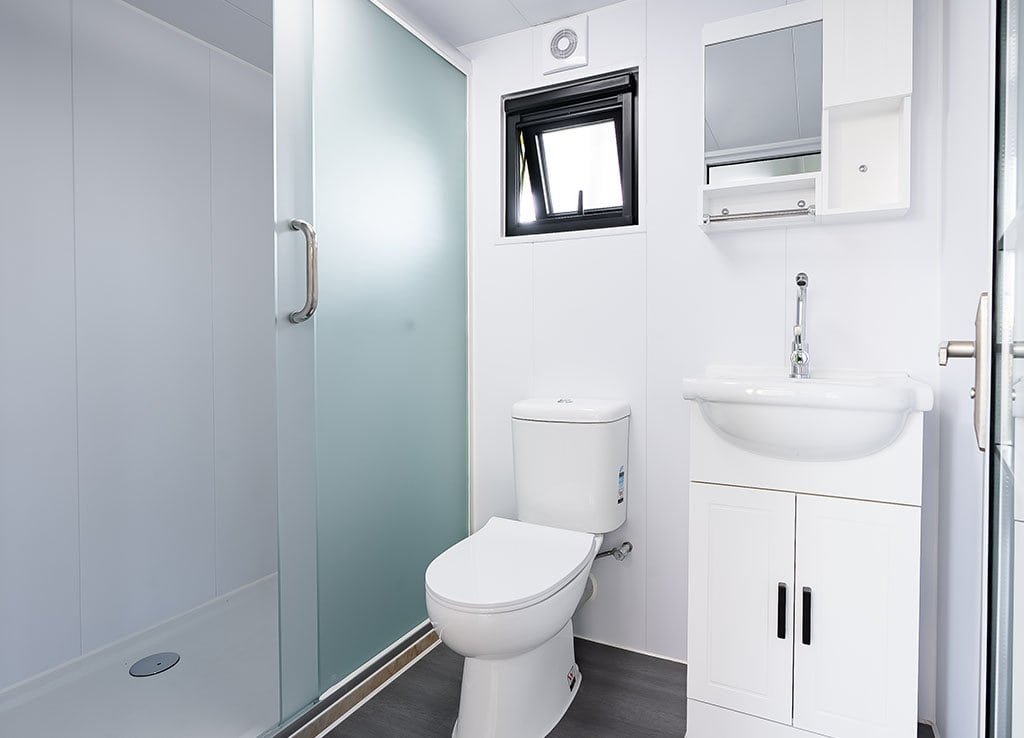

The Panorama bathroom is supplied largely pre-installed and ready for final connection by a licensed tradesperson once onsite installation is complete.
• White ceramic toilet supplied with soft-close lid
• Exhaust fan pre-installed

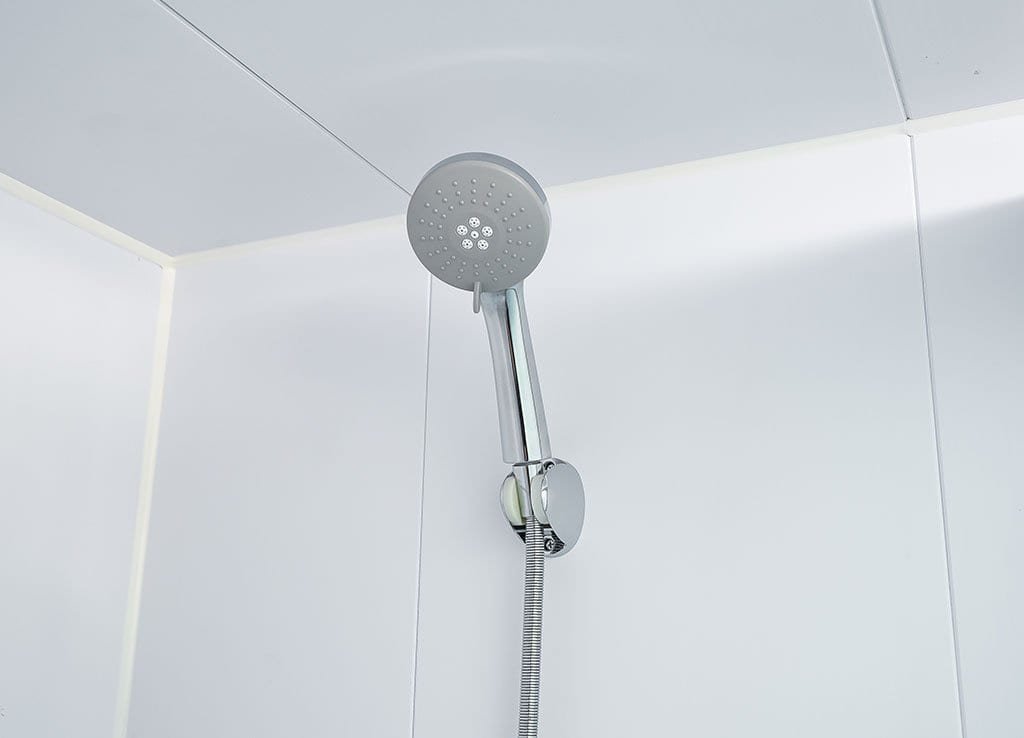

• Full-size shower with semi-frameless sliding glass screen, chrome mixer tapware, and hand shower with wall bracket
• Vanity unit pre-installed with chrome mixer tapware and pop-up waste

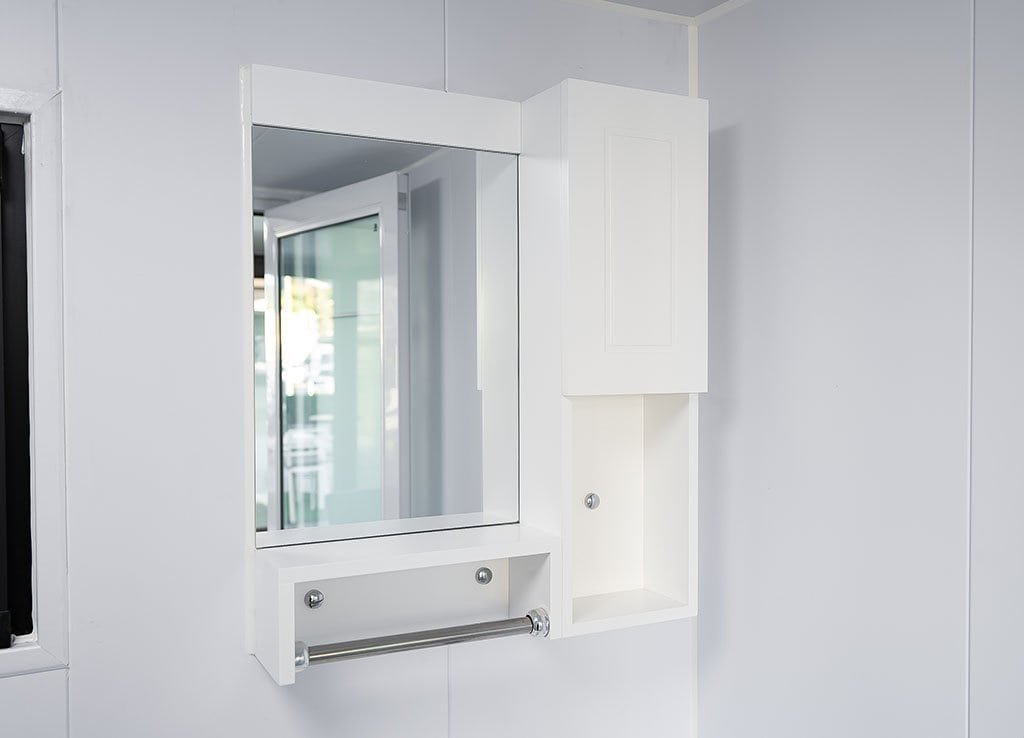

• Overhead mirrored cabinet supplied with integrated hanging rack

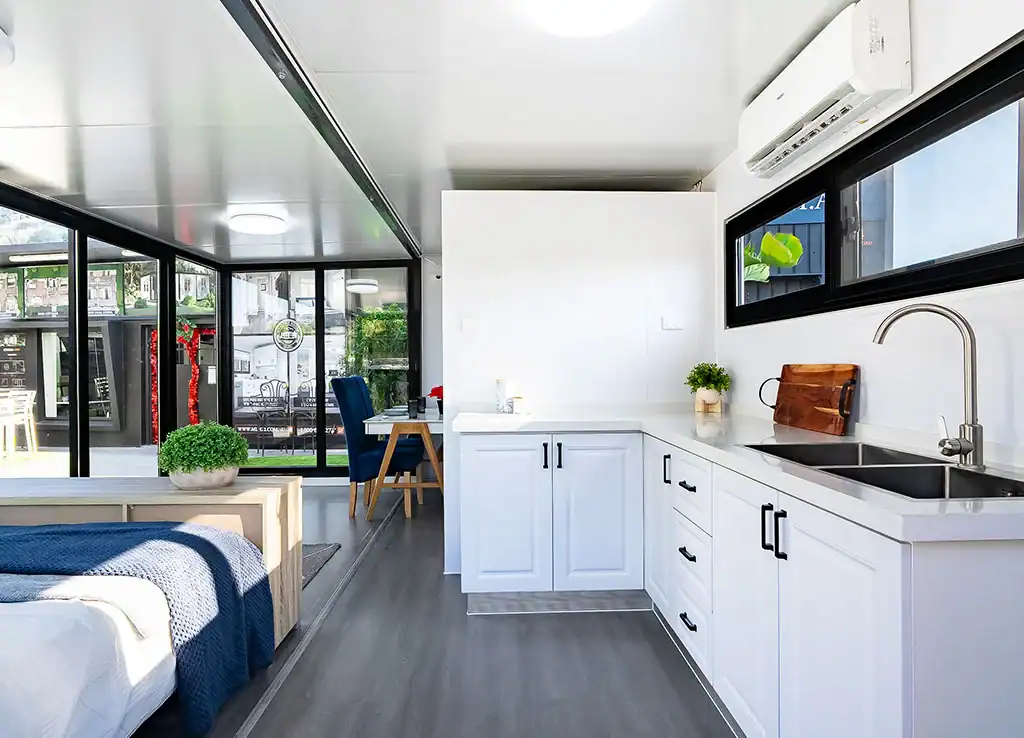

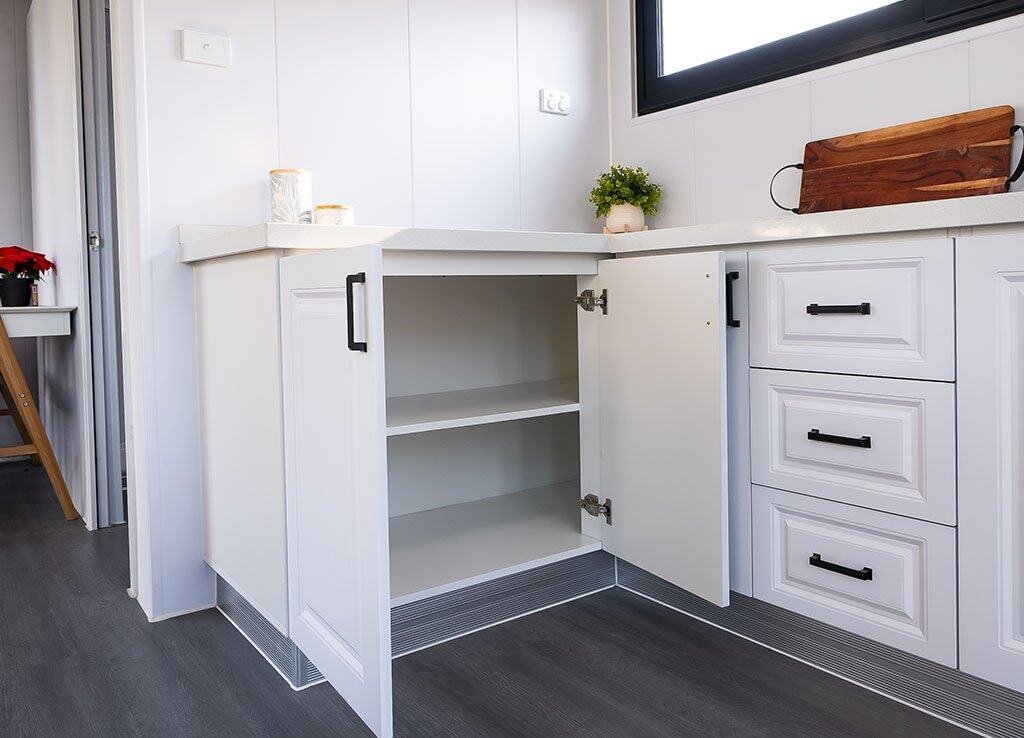

Each Panorama kitchen is supplied pre-installed in an L-shaped configuration, designed to maximise bench space while allowing room for a refrigerator or dishwasher.

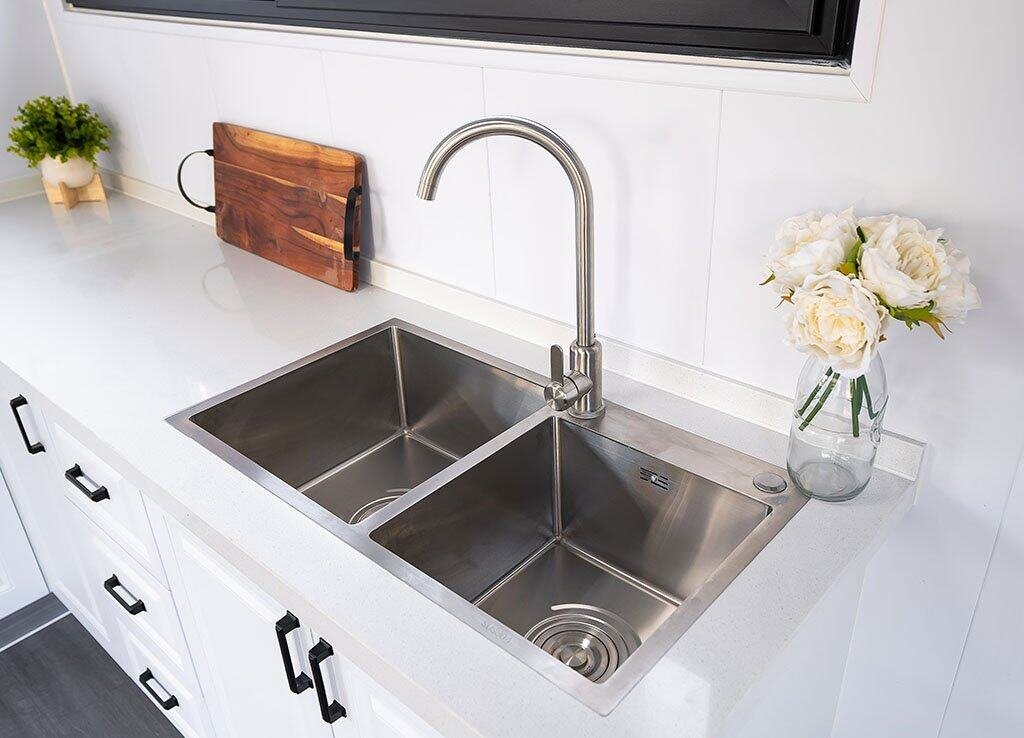

• Stainless steel double-bowl sink with flick mixer tapware
• White quartz engineered benchtop with rear mini splash riser
• Floor-mounted cabinetry with cupboards and drawers for ample storage
• Floor kickplate and door handles supplied as standard
No matter the configuration, the Panorama 20ft Expander is supplied with double-glazed toughened glass external windows and entry doors as standard.
• Internal doors are pre-hung with the lock body fitted, ready for final handle installation.

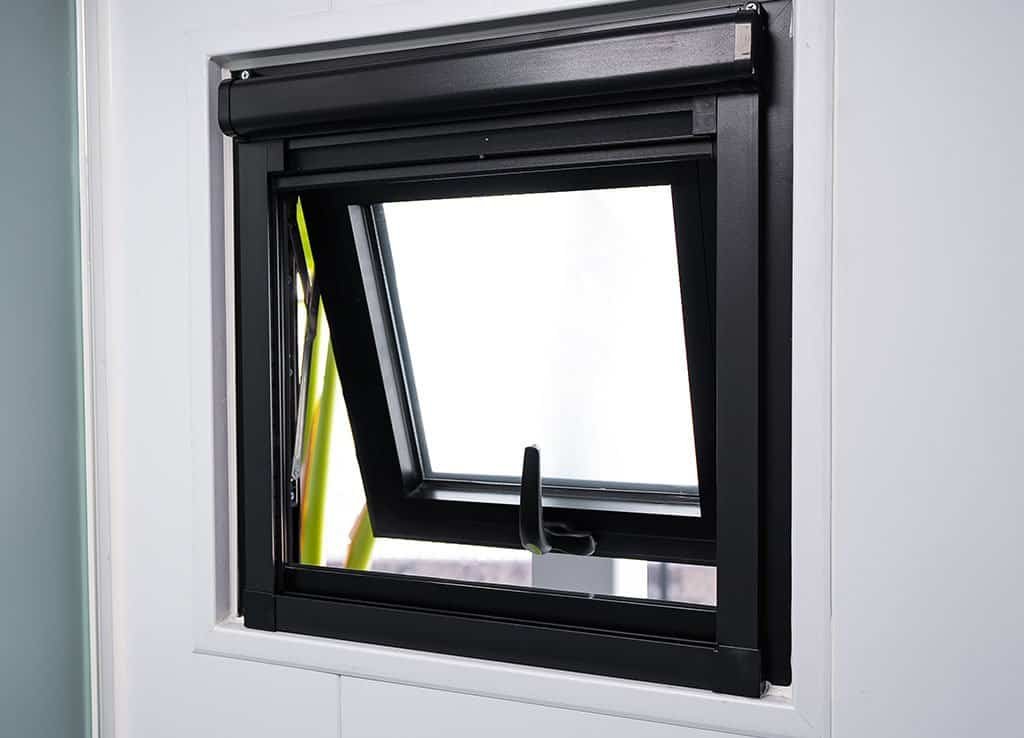

• External windows feature aluminium frames and integrated mesh flyscreens (where applicable).
• Sliding front entry door is supplied with an aluminium frame and security lock.
• Bathroom door is finished with modern frosted privacy glass for added discretion
Much of the plumbing s pre-installed and ready for final connection by a licensed tradesperson once installation is complete. The Panorama is designed with separate grey water and waste systems, exiting neatly from the centre rear of the unit for straightforward connection onsite.
• All taps, showers, and plumbing fixtures are supplied with WaterMark certification
• Kitchen and bathroom are pre-plumbed with hot and cold threaded brass water inlets
• Grey water discharges via a 50mm PVC outlet
• Waste water exits via a 100mm PVC outlet

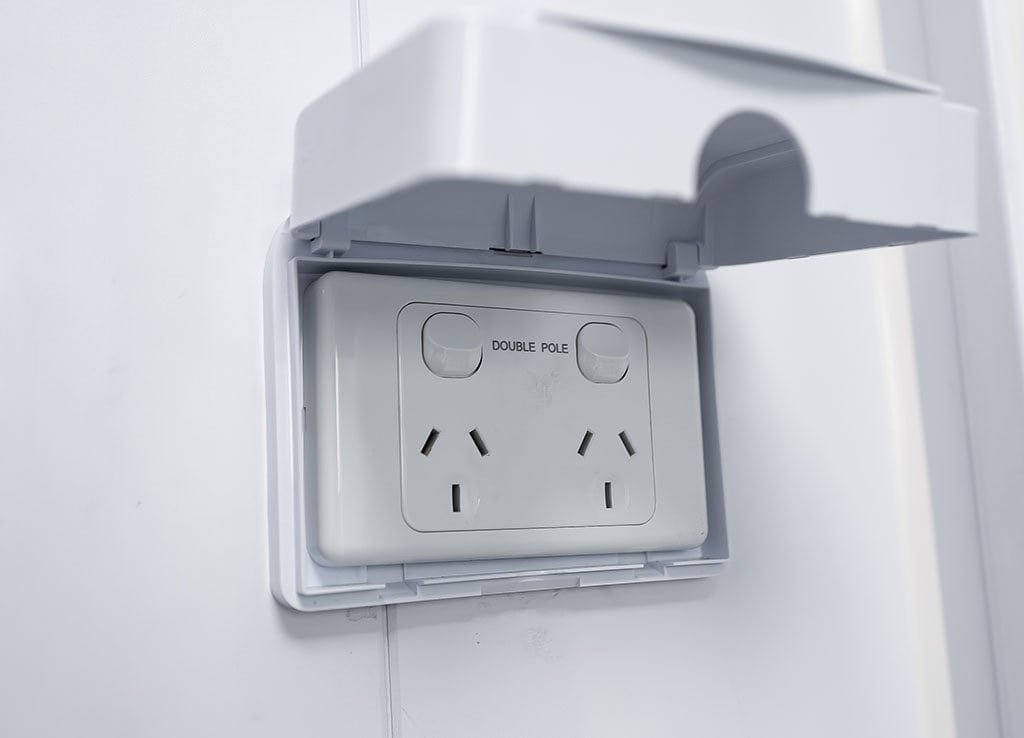

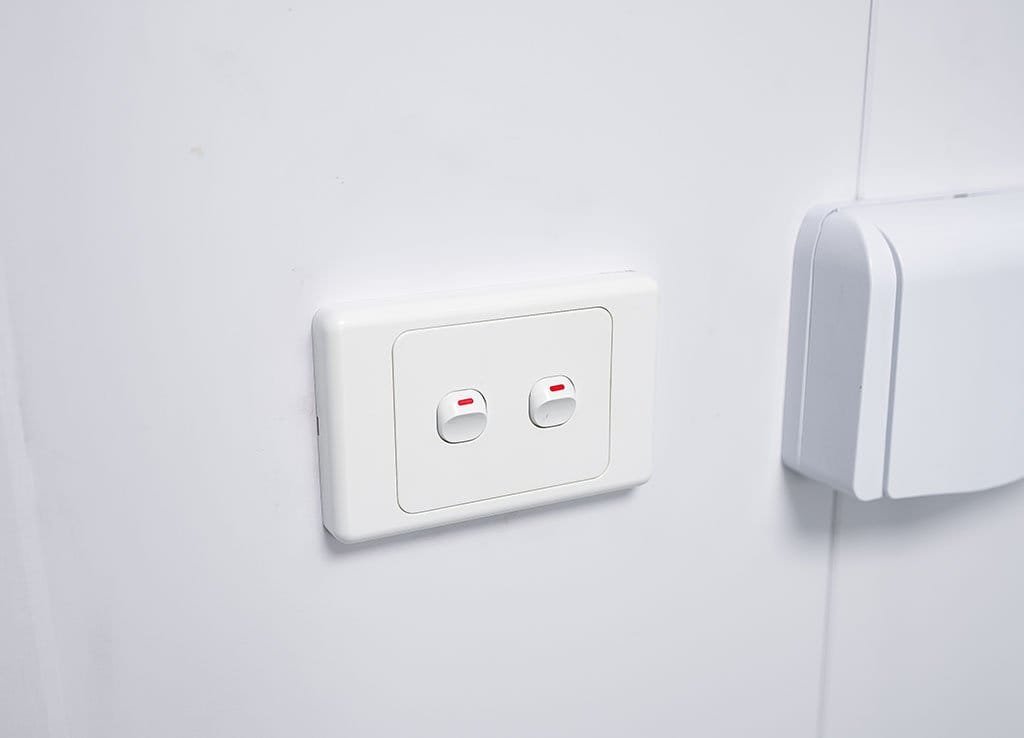

Each Panorama 20ft Expander is supplied mostly pre-wired, with final connections to be completed by a qualified tradesperson once installation is finished. An Electrical Distribution Board (EDB) is pre-installed within each unit and centrally located where applicable. Light switches and power points are positioned throughout the unit for everyday convenience.
• Low power-draw round LED lights supplied, with switches pre-fitted
• Electrical wiring exits from the rear of the unit, ready for final connection
• Electrical system designed to accommodate air-conditioning and electric hot-water systems*
• Australian-compliant electrical components used throughout
*Please consult a licensed tradesperson to ensure selected appliances are compatible with the pre-wired electrical system.
External: L5900 mm x W3900 mm x H2500 mm
Internal: L5600 mm x W3700 mm x H2300 mm
Closed: L5900mm x W2250 x H2500mm
The Panorama 20ft expander is built on a heavy-duty galvanised steel frame, finished in a durable Grand Grey epoxy coating. The wall and slide-out ceiling systems use EPS (expanded polystyrene) sandwich panels, chosen for their strong thermal and acoustic performance.
• Contemporary exterior cladding is supplied and installed as standard
• The main roof section features steel cladding with integrated glass-wool insulation for improved temperature control
• External walls and the slide-out ceiling are constructed from 50mm EPS sandwich panels
• A purpose-designed sliding frame system allows the Panorama to remain fully portable and transportable
Each Panorama 20ft expander is supplied with magnesium oxide (MgO) composite flooring, finished with a durable timber-look vinyl surface. MgO flooring is selected for its excellent thermal performance, moisture resistance, and resistance to rot and insects, making it well suited to portable and expandable structures.
• MgO board flooring is used for its strength, stability, and moisture resistance
• Floor skirting trims and capping pieces are included as standard
• 8mm PVC vinyl flooring is factory installed over the MgO substrate
The bathroom is supplied largely pre-installed and ready for final connection by a licensed tradesperson once onsite installation is complete.
• White ceramic toilet supplied with soft-close lid
• Exhaust fan pre-installed
• Full-size shower with semi-frameless sliding glass screen, chrome mixer tapware, and hand shower with wall bracket
• Vanity unit pre-installed with chrome mixer tapware and pop-up waste
• Overhead mirrored cabinet supplied with integrated hanging rack
Each Panorama kitchen is supplied pre-installed in an L-shaped configuration, designed to maximise bench space while allowing room for a refrigerator or dishwasher.
• Stainless steel double-bowl sink with flick mixer tapware
• White quartz engineered benchtop with rear mini splash riser
• Floor-mounted cabinetry with cupboards and drawers for ample storage
• Floor kickplate and door handles supplied as standard
No matter the configuration, the Panorama 20ft expander is supplied with double-glazed toughened glass external windows and entry doors as standard.
• Internal doors are pre-hung with the lock body fitted, ready for final handle installation.
• External windows feature aluminium frames and integrated mesh flyscreens (where applicable).
• Sliding front entry door is supplied with an aluminium frame and security lock.
• Bathroom door is finished with modern frosted privacy glass for added discretion
Much of the plumbing is pre-installed and ready for final connection by a licensed tradesperson once installation is complete. The Panorama is designed with separate grey water and waste systems, exiting neatly from the centre rear of the unit for straightforward connection onsite.
• All taps, showers, and plumbing fixtures are supplied with WaterMark certification
• Kitchen and bathroom are pre-plumbed with hot and cold threaded brass water inlets
• Grey water discharges via a 50mm PVC outlet
• Waste water exits via a 100mm PVC outlet
Each SliderX 20ft Expander is supplied mostly pre-wired, with final connections to be completed by a qualified tradesperson once installation is finished. An Electrical Distribution Board (EDB) is pre-installed within each unit and centrally located where applicable. Light switches and power points are positioned throughout the unit for everyday convenience.
• Low power-draw round LED lights supplied, with switches pre-fitted
• Electrical wiring exits from the rear of the unit, ready for final connection
• Electrical system designed to accommodate air-conditioning and electric hot-water systems*
• Australian-compliant electrical components used throughout
*Please consult a licensed tradesperson to ensure selected appliances are compatible with the pre-wired electrical system.
