Home / StudioX

StudioX

1 Bed, 1 Bath, 1 Kitchen

From $20,999

Own it from just $109/week

1

1

-

1

13 ㎡

2000kg

GET FINANCE
REQUEST QUOTE
ADD TO QUOTE

At a glance

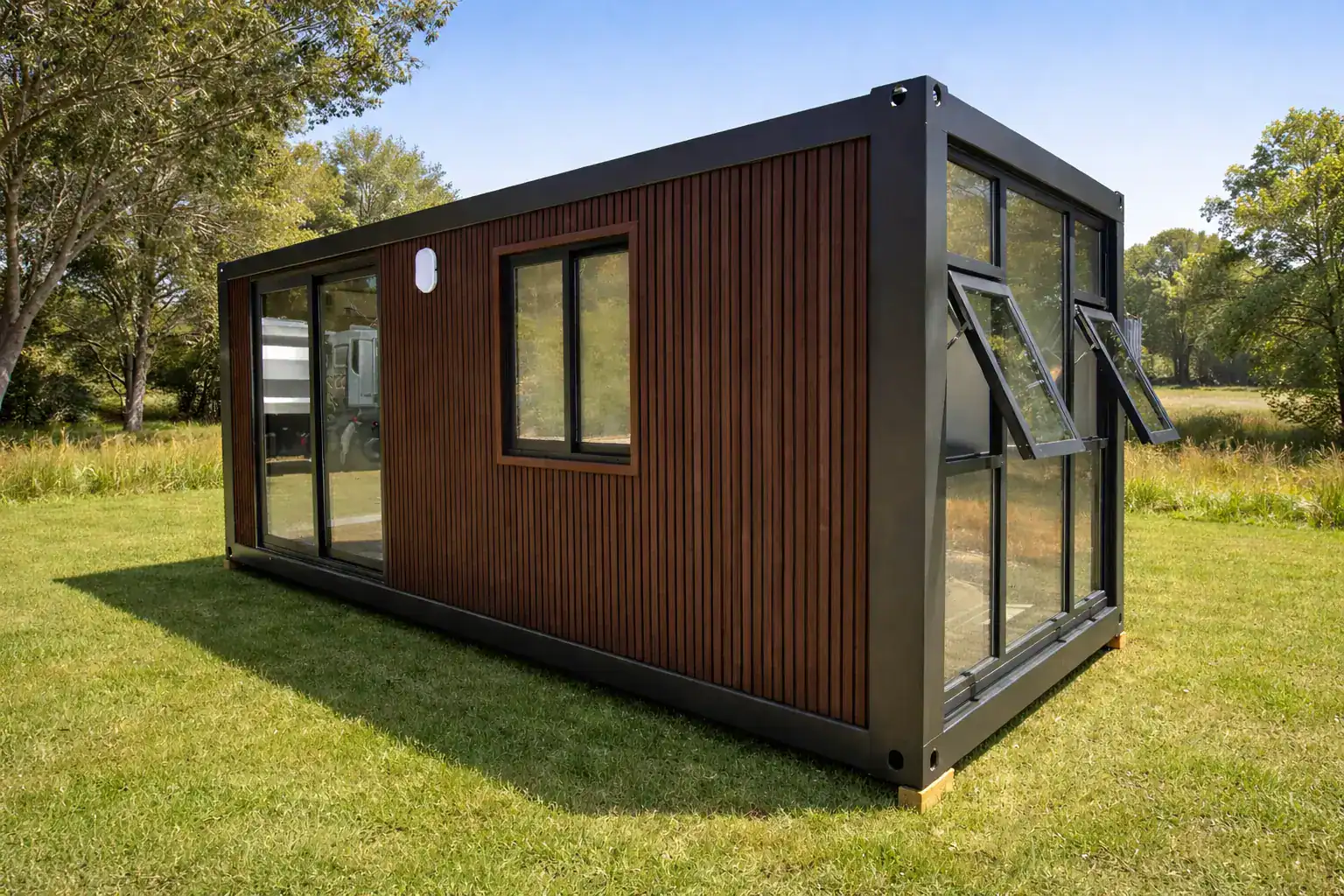

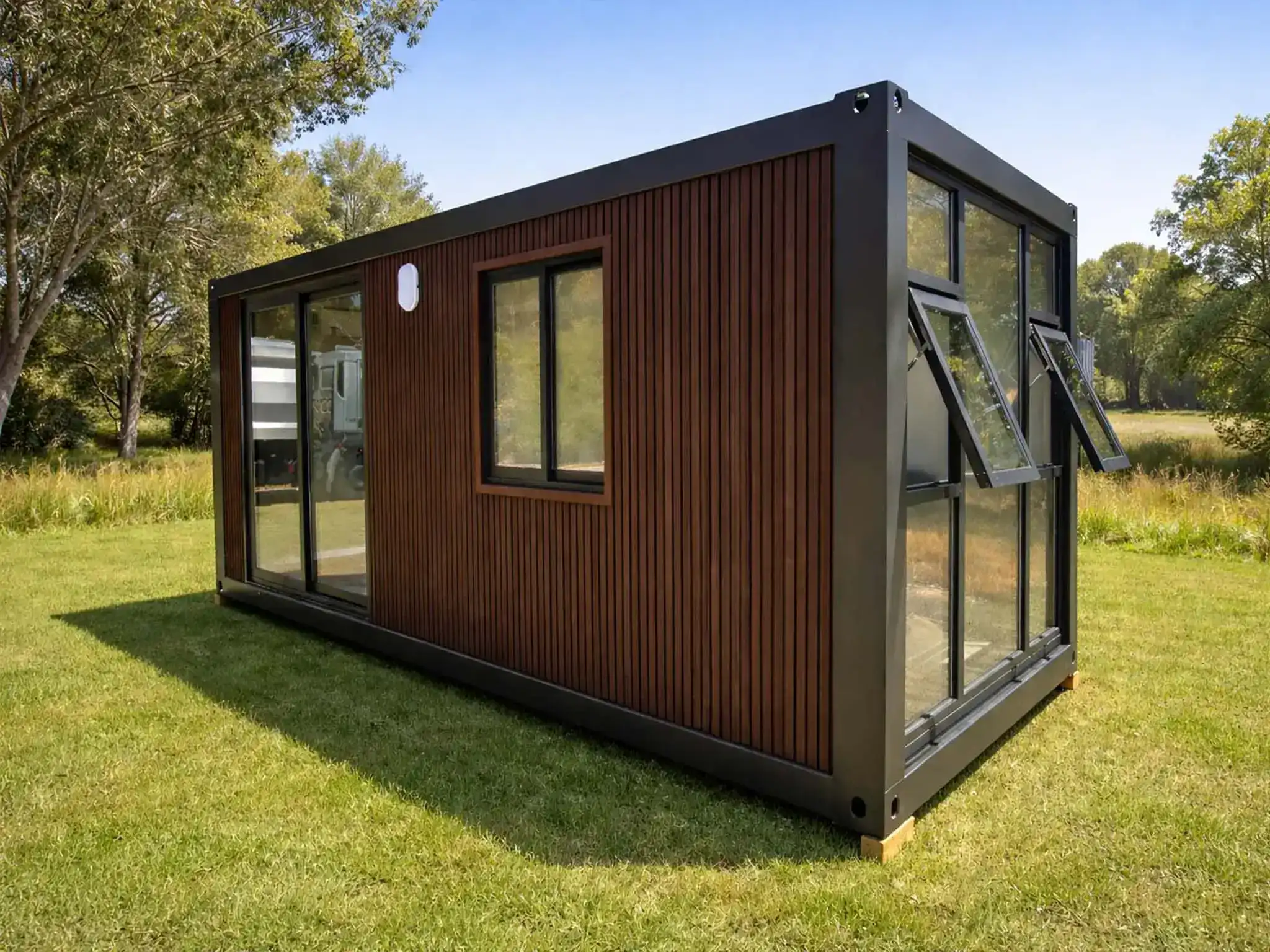

StudioX is a ready-to-go escape that feels open, bright, and easy to live in. With warm timber-look finishes, black framing, and expansive glazing, it’s designed to bring the outdoors in.

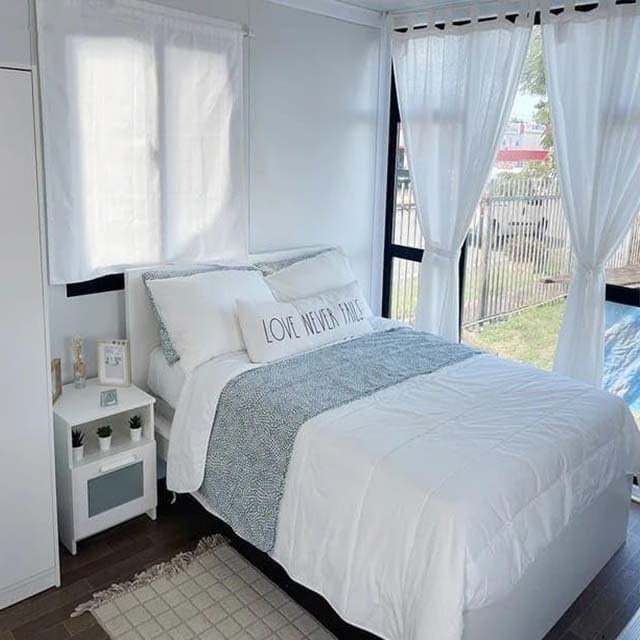

Inside, a functional kitchen with breakfast bar, comfortable sleeping zone, and private bathroom make it a smart fit for backyards, bush blocks, or coastal settings.

Key benefits

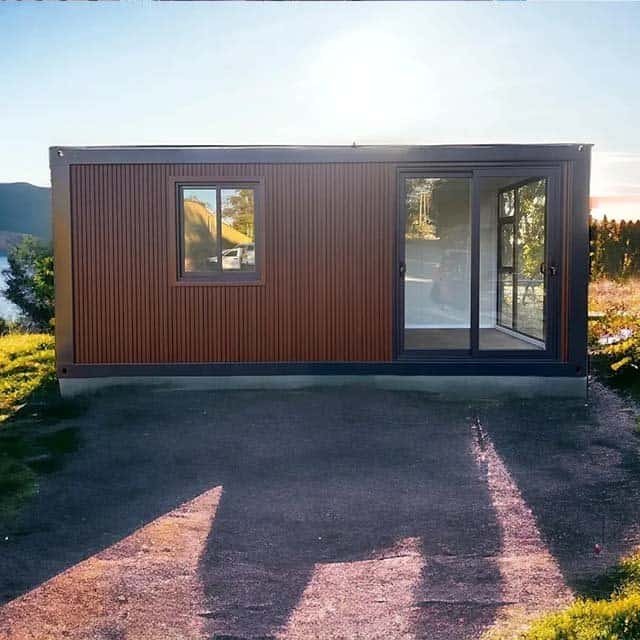

  • Vertically clad front façade
  • Full-height side glazing
  • Kitchen with brekky bar
  • High internal ceiling
  • Rapid setup on site
  • Premium steel frame construction
  • Insulated walls, roof & floor
  • Double-glazed glass throughout
  • Vertical cladding to front façade
  • Full-height sliding entry door
  • L-shaped kitchen with dual sotage
  • Soft-close doors and drawers
  • Quartz benchtop with induction cooktop
  • Stainless sink with gold tapware
  • Fully enclosed shower, toilet & vanity
  • Dedicated ventilation system
  • LED internal & external lighting

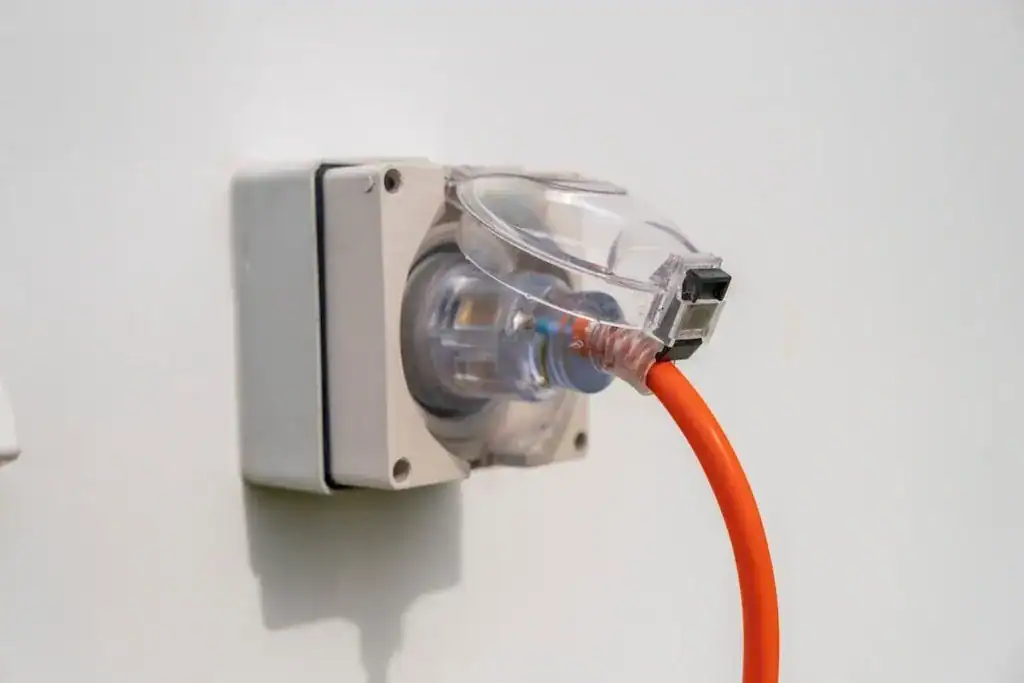

  • Multiple powerpoints & external GPO
  • Internal switchboard access
  • Pre-wired to AS/NZS3000 & 3001 standards
  • Pre-plumbed with WaterMark certification
  • SPC flooring with MgO subfloor
DIMENSIONS

External: L6000mm x W2438 mm x H2591 mm

Internal: L5820 mm x W2260 mm x H2400 mm

STRUCTURAL & EXTERIOR FINISHES

The StudioX is built on a galvanised steel frame with a durable epoxy finish, designed for long-term reliability and everyday comfort. Insulated wall and roof systems help regulate temperature and reduce external noise, making it well suited to a range of environments.

  • Galvanised steel structural frame with protective epoxy coating

  • EPS insulated panels to external walls for improved thermal and acoustic performance

  • Fixed steel roof sheeting finished in Grand Grey epoxy paint

  • Glass-wool insulation installed to the ceiling for added thermal and sound control

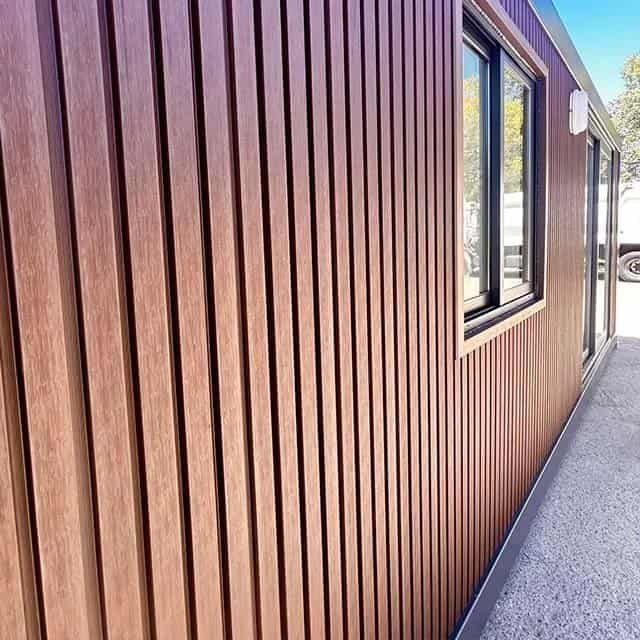

  • Exterior cladding feature is applied to the front façade only

FLOORING & INTERIOR FINISHES

StudioX is supplied with a magnesium oxide (MgO) composite floorbase, finished with modern style SPC planks. MgO flooring is selected for its excellent thermal performance, moisture resistance, and resistance to rot and insects, making it well suited to portable and expandable structures.

• MgO board flooring is used for its strength, stability, and moisture resistance

• Floor skirting trims and capping pieces are included as standard

• 8 mm timber-look SPC flooring is factory installed over the MgO substrate

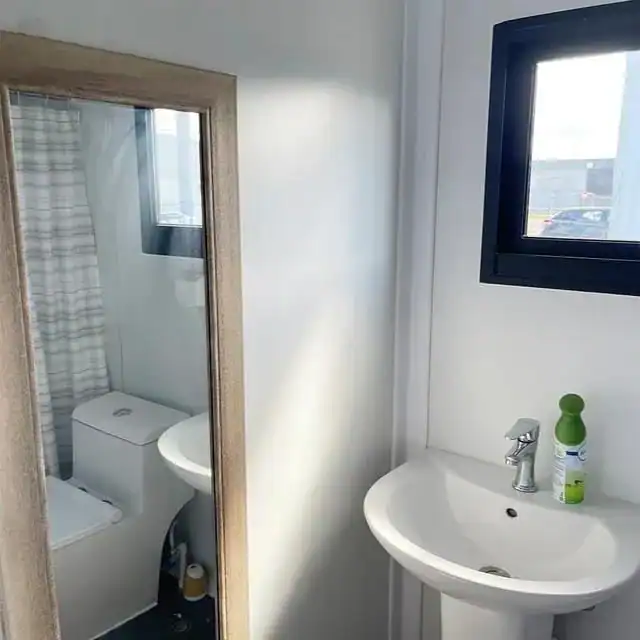

BATHROOM FIXTURES

The bathroom is supplied as a waterproofed, factory-fitted module with fixtures installed and services pre-plumbed for easy on-site connection.

• Full-size shower installed within the wet-area module

• Vanity with integrated basin and modern tapware

• Toilet installed and pre-plumbed

• Dedicated ventilation system installed for moisture control

• Greywater pre-plumbed and routed to a dedicated outlet

KITCHEN EQUIPMENT

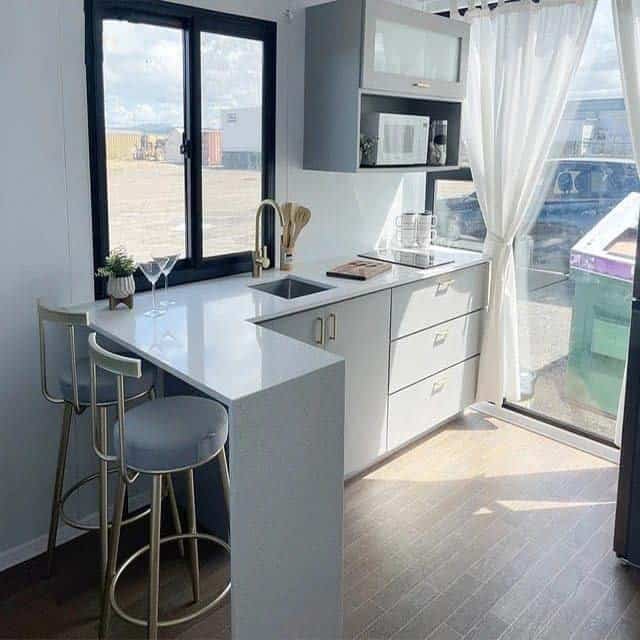

The kitchen features an extended L-shaped layout designed to maximise bench space and functionality, with finishes selected for everyday practicality and low maintenance.

• Extended L-shaped kitchen layout with stone-effect benchtops

• Built-in breakfast bar for casual dining or workspace use

• Soft-close cabinetry with overhead storage for ample everyday storage

• Induction cooktop with provision for integrated microwave

• Large window and nearby glazed entry supporting natural light and ventilation

WINDOWS & DOORS

StudioX includes double-glazed windows and a full-height sliding glass entry door, designed to maximise natural light while supporting thermal performance and everyday comfort.

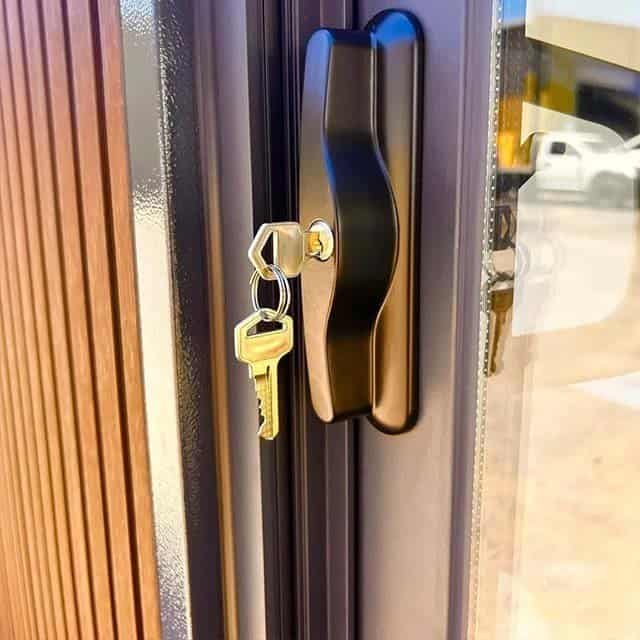

• Full-height sliding glass entry door providing an open, light-filled connection to the outdoors

• Full-wall glazing to the side façade, enhancing daylight through the living and bedroom zones

• Side-positioned operable window to improve natural light within the bedroom zone

• Operable windows throughout to support cross-ventilation

• All glazing framed in a modern matt black finish to complement the exterior aesthetic

PLUMBING HARDWARE

Plumbing services are pre-installed throughout, allowing for straightforward final connection by a licensed tradesperson once the unit is in position.

• Hot and cold water lines are pre-plumbed to the kitchenette and bathroom, terminating in threaded brass inlets

• Grey water from the kitchenette and bathroom is connected via a 50 mm PVC pipe to a single outlet point

• Toilet waste is pre-plumbed using a 100 mm PVC line, exiting through the wall with a P-trap configuration

ELECTRICAL COMPONENTS

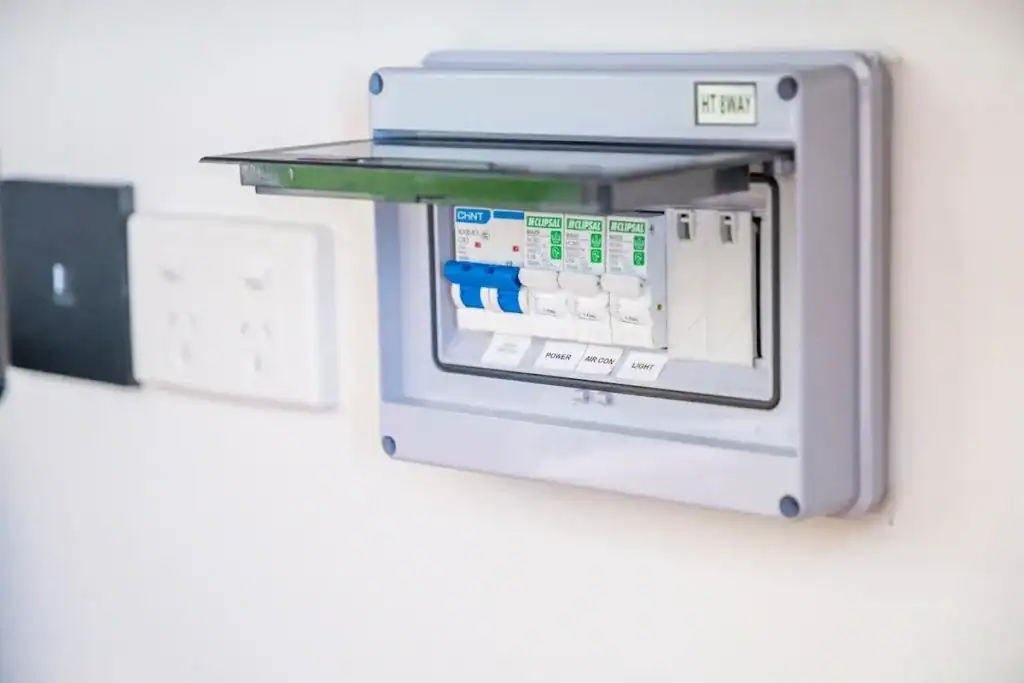

Electrical cabling is pre-installed from the external cable tail to the Electrical Distribution Board (EDB) with circuit protection, then distributed to all lighting, switches, and power outlets in accordance with AS3001. Provision is included for connection of an air-conditioning system.

Final connection of mains power, lights, switches, and power outlets must be completed by a licensed electrician to suit site requirements.

Supplied loose for final installation:

  • Low-profile LED light fittings

  • Light switches

  • Double power points (double pole)

Download

Plans

Click tabs to learn more

Home / StudioX

StudioX

1 Bed, 1 Bath, 1 Kitchen

From $20,999

Own it from just $109/week

-

1

-

1

13 ㎡

2000kg

GET FINANCE
REQUEST QUOTE
ADD TO QUOTE

At a glance

StudioX is a ready-to-go escape that feels open, bright and effortlessly stylish. With a warm timber-look exterior, black framing and expansive glazing, it brings the outdoors in and never feels cramped.

Inside, it features a proper kitchenette with breakfast bar, a comfortable bedroom zone and a private bathroom, finished in clean, modern tones to suit backyard, bush or coastal settings.

  • Full-height side glazing
  • Vertical cladding feature
  • High ceiling
  • Lightweight build
  • Rapid setup on site
  • Relocatable by design

Design highlights
  • Premium steel frame construction
  • Insulated wall and roof panels
  • Warm timber-look vertical cladding
  • Side glass wall feature
  • L-shaped kitchen with breakfast bar
  • Stone-effect bench-top (silica free)
  • Soft close cabinetry above and below
  • Integrated dual induction cooktop
  • Grey-tone sink with gold tapware
  • Fully enclosed shower, toilet, and vanity
  • Large sliding glass entry door
  • Double glazed glass throughout
  • Flyscreens where applicable
  • Excellent cross-lighting and ventilation
  • Pre-wired electrical fit-out
  • Pre-plumbed water and waste
  • LED internal lighting fixtures
  • LED external feature light
  • Strong SPC floor with MgO subfloor
  • Multiple powerpoints throughout
DIMENSIONS

External: L6000mm x W2438 mm x H2591 mm

Internal: L5820 mm x W2260 mm x H2400 mm

STRUCTURAL & EXTERIOR FINISHES

The StudioX is built on a galvanised steel frame with a durable epoxy finish, designed for long-term reliability and everyday comfort. Insulated wall and roof systems help regulate temperature and reduce external noise, making it well suited to a range of environments.

  • Galvanised steel structural frame with protective epoxy coating

  • EPS insulated panels to external walls for improved thermal and acoustic performance

  • Fixed steel roof sheeting finished in Grand Grey epoxy paint

  • Glass-wool insulation installed to the ceiling for added thermal and sound control

  • Exterior cladding feature is applied to the front façade only

FLOORING & INTERIOR FINISHES

The bathroom is supplied as a waterproofed, factory-fitted module with fixtures installed and services pre-plumbed for easy on-site connection.

• Full-size shower installed within the wet-area module

• Vanity with integrated basin and modern tapware

• Toilet installed and pre-plumbed

• Dedicated ventilation system installed for moisture control

• Greywater pre-plumbed and routed to a dedicated outlet

StudioX is supplied with a magnesium oxide (MgO) composite floorbase, finished with modern style SPC planks. MgO flooring is selected for its excellent thermal performance, moisture resistance, and resistance to rot and insects, making it well suited to portable and expandable structures.

• MgO board flooring is used for its strength, stability, and moisture resistance

• Floor skirting trims and capping pieces are included as standard

• 8 mm timber-look SPC flooring is factory installed over the MgO substrate

BATHROOM FIXTURES

The bathroom is supplied as a waterproofed, factory-fitted module with fixtures installed and services pre-plumbed for easy on-site connection.

• Full-size shower installed within the wet-area module

• Vanity with integrated basin and modern tapware

• Toilet installed and pre-plumbed

• Dedicated ventilation system installed for moisture control

• Greywater pre-plumbed and routed to a dedicated outlet

KITCHEN EQUIPMENT

The kitchen features an extended L-shaped layout designed to maximise bench space and functionality, with finishes selected for everyday practicality and low maintenance.

• Extended L-shaped kitchen layout with stone-effect benchtops

• Built-in breakfast bar for casual dining or workspace use

• Soft-close cabinetry with overhead storage for ample everyday storage

• Induction cooktop with provision for integrated microwave

• Large window and nearby glazed entry supporting natural light and ventilation

WINDOWS & DOORS

StudioX includes double-glazed windows and a full-height sliding glass entry door, designed to maximise natural light while supporting thermal performance and everyday comfort.

• Full-height sliding glass entry door providing an open, light-filled connection to the outdoors

• Full-wall glazing to the side façade, enhancing daylight through the living and bedroom zones

• Side-positioned operable window to improve natural light within the bedroom zone

• Operable windows throughout to support cross-ventilation

• All glazing framed in a modern matt black finish to complement the exterior aesthetic

PLUMBING HARDWARE

Plumbing services are pre-installed throughout, allowing for straightforward final connection by a licensed tradesperson once the unit is in position.

• Hot and cold water lines are pre-plumbed to the kitchenette and bathroom, terminating in threaded brass inlets

• Grey water from the kitchenette and bathroom is connected via a 50 mm PVC pipe to a single outlet point

• Toilet waste is pre-plumbed using a 100 mm PVC line, exiting through the wall with a P-trap configuration

ELECTRICAL COMPONENTS

Electrical cabling is pre-installed from the external cable tail to the Electrical Distribution Board (EDB) with circuit protection, then distributed to all lighting, switches, and power outlets in accordance with AS3001. Provision is included for connection of an air-conditioning system.

Final connection of mains power, lights, switches, and power outlets must be completed by a licensed electrician to suit site requirements.

Supplied loose for final installation:

  • Low-profile LED light fittings

  • Light switches

  • Double power points (double pole)

Plans
